EW-05-15-T-S-200

Active

Samtec Inc.

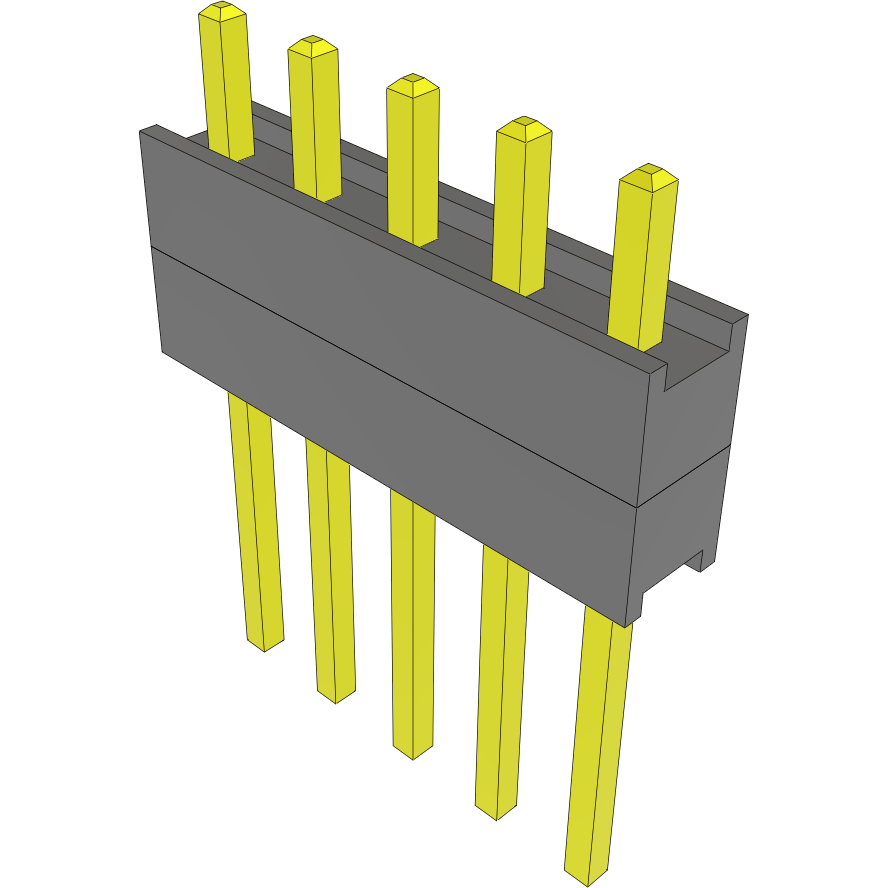

CONN BOARD STACKER HDR 5 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BOARD STACKER HDR 5 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Part	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Contact Finish - Post (Mating)	Color	Termination	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows
Samtec Inc. EW-05-15-G-D-250	0.1 in	2.54 mm	0.25 in	6.35 mm	Through Hole	Gold	Black	Solder	10	0.25 Ám	10 Áin	2.54 mm	0.1 in	0.33 in	8.382 mm	0.05 in	1.27 mm	16.002 mm	0.63 in	2
Samtec Inc. EW-05-15-T-S-200					Through Hole	Tin	Black	Solder				2.54 mm	0.1 in	0.33 in	8.382 mm	0.1 in	2.54 mm	16.002 mm	0.63 in	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
