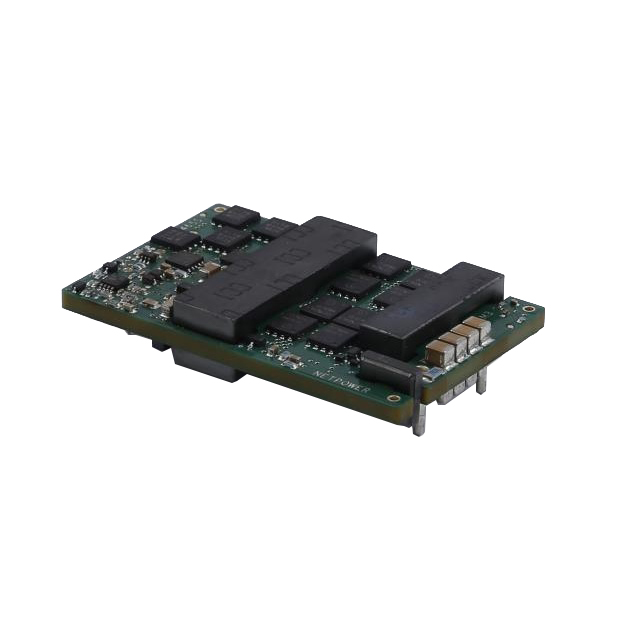

QBC4120N033N75

Active

NetPower

DC DC CONVERTER 12V 396W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 12V 396W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 396W

Part	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Voltage - Isolation	Mounting Type	Features	Type	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Supplier Device Package
NetPower QBC4120N033N75	396 W	75 V	12 V	Active Low, Enable	85 °C	-40 °C	Quarter Brick	33 A	36 V	ITE (Commercial)	1	2250 VDC	Through Hole	Remote On/Off	Isolated Module	95.5 %	58.2 mm	37.1 mm	2.29 in	10.2 mm	1.46 in	0.4 "	Quarter Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 85.40

General part information

Isolated Module DC DC Converter 1 Output 12V 33A 36V - 75V Input
