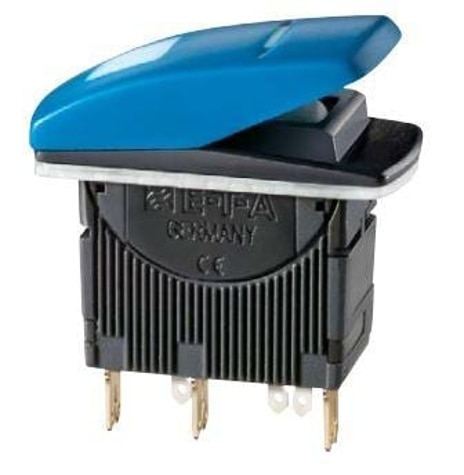

3131-CF1PT-000000-1T2-5A

Active

CIRCUIT BREAKERS COMBINATION OF SINGLE POLE CIRCUIT BREAKER AND ON/OFF SWITCH WITH SOFT-TOUCH ROCKER ACTUATION. CONTOURED ROCKERS ARE AVAILABLE WITH A CHOICE OF COLOURS AND LEGENDS, WITH OPTIONAL ILLUMINATION. THE 3131 IS SEALED TO PROVIDE IP66 RATED FRO

Find alt

Alpha

3131-CF1PT-000000-1T2-5A

Active

E-T-A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

3131-A/C Series

Circuit Breakers Combination of single pole circuit breaker and ON/OFF switch with soft-touch rocker actuation. Contoured rockers are available with a choice of colours and legends, with optional illumination. The 3131 is sealed to provide IP66 rated fro

Technical Specifications

Parameters and characteristics for this part

Specification	3131-CF1PT-000000-1T2-5A

Actuator Type	Not Included
Approval Agency	UL1500, UL1077, IEC 60934
Breaker Type	Thermal
Current Rating	5 A
Illumination	Blue
Illumination Voltage (Nominal) (Maximum)	14 VAC/DC
Illumination Voltage (Nominal) (Minimum)	10 V
Mounting Type	Panel Mount
Number of Poles	1
Voltage Rating - AC	240 V
Voltage Rating - DC	28 V

3131-A/C Series

Part	Voltage Rating - DC	Current Rating	Actuator Type	Number of Poles	Voltage Rating - AC	Approval Agency	Illumination Voltage (Nominal) (Minimum)	Illumination Voltage (Nominal) (Maximum)	Illumination	Mounting Type	Breaker Type
E-T-A 3131-AF1PT-000000-1T2-1A	28 V	1 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500	10 V	14 VAC/DC	Blue	Panel Mount	Thermal
E-T-A 3131-AF1NT-000000-1Y7-5A	28 V	5 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500	185 V	275 V	Yellow	Panel Mount	Thermal
E-T-A 3131-CF1PT-000000-3Y2-20A	28 V	20 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500	10 V	14 VAC/DC	Yellow	Panel Mount	Thermal
E-T-A 3131-AF1NT-000000-1T2-5A	28 V	5 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500	10 V	14 VAC/DC	Blue	Panel Mount	Thermal
E-T-A 3131-AF1PT-000000-1Y6-6A	28 V	6 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500			Yellow	Panel Mount	Thermal
E-T-A 3131-AF1PT-000000-1Y7-15A	28 V	15 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500			None	Panel Mount	Thermal
E-T-A 3131-AF1HT-000000-000-20A	28 V	20 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500				Panel Mount	Thermal
E-T-A 3131-AF1NT-000000-1Y2-18A	28 V	18 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500	10 V	14 VAC/DC	Yellow	Panel Mount	Thermal
E-T-A 3131-AF1PT-000000-1Y6-20A	28 V	20 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500			Yellow	Panel Mount	Thermal
E-T-A 3131-AF1PT-000000-1Y2-5A	28 V	5 A	Not Included	1	240 V	IEC 60934 UL1077 UL1500	10 V	14 VAC/DC	Yellow	Panel Mount	Thermal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
