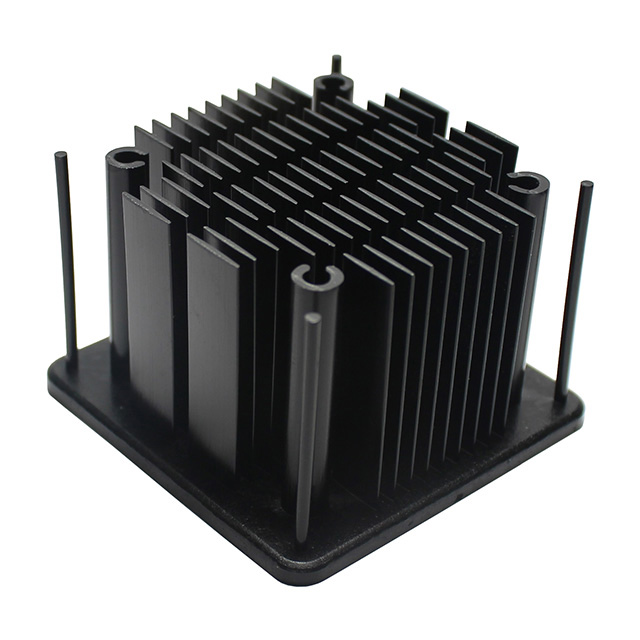

AER50-50-15CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Technical Specifications

Parameters and characteristics for this part

Specification	AER50-50-15CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	0.575 in
Fin Height [z]	14.6 mm
Length	49.6 mm
Length	1.953 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	2.35 °C/W, 200 LFM
Type	Top Mount
Width [x]	49.6 mm
Width [x]	1.953 in

Part	Shelf Life	Attachment Method	Shape	Length	Length	Type	Fin Height [z]	Fin Height [z]	Material	Material Finish	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Package Cooled	Thermal Resistance @ Natural	Fin Height	Fin Height
Tusonix a Subsidiary of CTS Electronic Components AER50-50-15CB/A01	24 Months	Thermal Tape Adhesive (Included)	Fins Square	49.6 mm	1.953 in	Top Mount	0.575 in	14.6 mm	Aluminum Alloy	Black Anodized	49.6 mm	1.953 in	2.35 °C/W 200 LFM	ASIC BGA CPU LGA
Tusonix a Subsidiary of CTS Electronic Components AER50-50-33CB/A01	24 Months	Thermal Tape Adhesive (Included)	Fins Square	49.6 mm	1.953 in	Top Mount			Aluminum Alloy	Black Anodized	49.6 mm	1.953 in	1.26 °C/W	ASIC BGA CPU LGA	5.9 °C/W	1.283 "	32.6 mm
Tusonix a Subsidiary of CTS Electronic Components AER50-50-28CB/A01	24 Months	Thermal Tape Adhesive (Included)	Fins Square	49.6 mm	1.953 in	Top Mount	1.087 in	27.6 mm	Aluminum Alloy	Black Anodized	49.6 mm	1.953 in	1.53 °C/W 200 LFM	ASIC BGA CPU LGA	6.49 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount
