MA120GQ-Z
ObsoleteMONOLITHIC POWER SYSTEMS (MPS)
SENSOR ANGLE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA120GQ-Z
ObsoleteMONOLITHIC POWER SYSTEMS (MPS)
SENSOR ANGLE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA120GQ-Z |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | SPI |

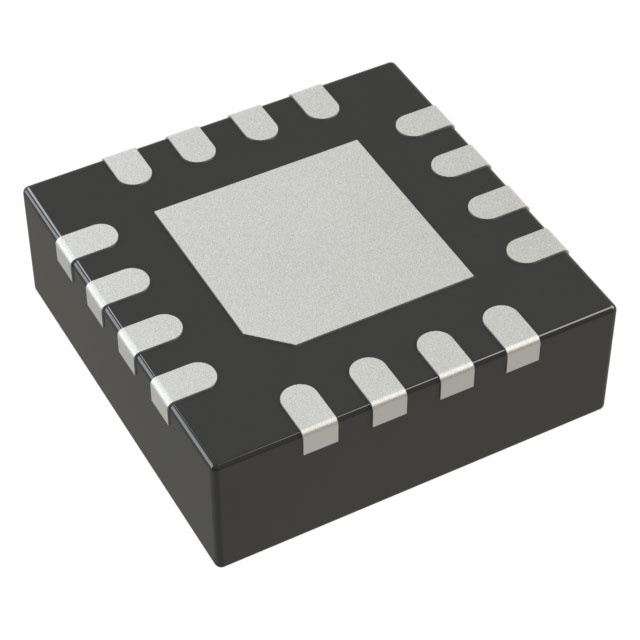

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Technology | Hall Effect |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MA120GQ-Z
Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
