45-190H.2000.111.101

Active

EAO

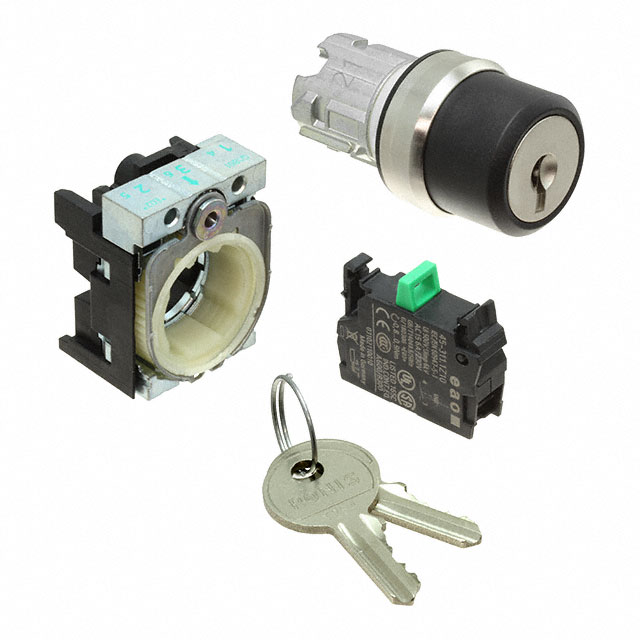

SWITCH KEYLCK 2POS SPST 10A 500V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLCK 2POS SPST 10A 500V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPST-NO 10A (AC/DC) 500 VAC 500 VDC Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	45-190H.2000.111.101	45-190H Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	SPST-NO	SPST-NO
Contact Material	Silver (Ag)	Silver (Ag)
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	10 A	10 A
Features	IP67, IP66, IP69K	IP67, IP66, IP69K
Key Removable Positions	All	All
Mechanical Life	1000000 Cycles	1000000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	Off-On	Off-On
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

SWITCH KEYLCK 2POS SPST 10A 500V

Part	Voltage Rating - AC	Number of Positions	Angle of Throw	Contact Timing	Features	Termination Style	Actuator Type	Key Removable Positions	Panel Cutout Dimensions [diameter]	Contact Material	Current Rating (Amps)	Circuit	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function
EAO 45-190H.3000.111.101	500 V	2	90 °	Not Specified	IP66, IP67, IP69K	Screw Terminal	Flat Key	All	22.3 mm	Silver (Ag)	10 A	SPST-NO	1000000 Cycles	70 °C	-25 °C	500 V	Off-On
EAO 45-190H.2000.111.401	500 V	2	90 °	Not Specified	IP66, IP67, IP69K	Spring Terminal	Flat Key	All	22.3 mm	Silver (Ag)	10 A	SPST-NO	1000000 Cycles	70 °C	-25 °C	500 V	Off-On
EAO 45-190H.1000.111.101	500 V	2	90 °	Not Specified	IP66, IP67, IP69K	Screw Terminal	Flat Key	All	22.3 mm	Silver (Ag)	10 A	SPST-NO	1000000 Cycles	70 °C	-25 °C	500 V	Off-On
EAO 45-190H.3000.111.401	500 V	2	90 °	Not Specified	IP66, IP67, IP69K	Spring Terminal	Flat Key	All	22.3 mm	Silver (Ag)	10 A	SPST-NO	1000000 Cycles	70 °C	-25 °C	500 V	Off-On
EAO 45-190H.2000.111.101	500 V	2	90 °	Not Specified	IP66, IP67, IP69K	Screw Terminal	Flat Key	All	22.3 mm	Silver (Ag)	10 A	SPST-NO	1000000 Cycles	70 °C	-25 °C	500 V	Off-On
