ECJ.2B.308.CLD
ActiveLEMO

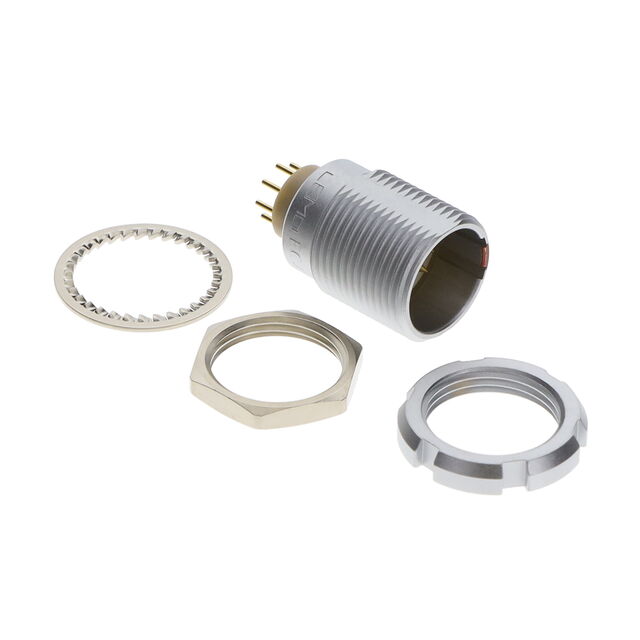

CONN RCPT MALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECJ.2B.308.CLD
ActiveLEMO
CONN RCPT MALE 8POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECJ.2B.308.CLD | ECJ.2B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 10 A | 2.5 - 25 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 8 | 2 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | J | J |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 308 | 302 - 436 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Crimp, Solder |
ECJ.2B Series
CONN RCPT MALE 2P GOLD SLDR CUP
| Part | Insert Material | Contact Finish - Mating | Number of Positions | Mounting Feature | Shielding | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Color | Material Flammability Rating | Shell Size - Insert | Connector Type | Contact Material | Shell Finish | Primary Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Fastening Type | Termination | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECJ.2B.302.CLA | Polyetheretherketone (PEEK) | Gold | 2 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 302 | Male Pins, Receptacle | Brass | Chrome | Metal | 25 A | 1 µm | 39.4 µin | J | Push-Pull | |||
LEMO ECJ.2B.310.CYC | Polyetheretherketone (PEEK) | Gold | 10 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 310 | Male Pins, Receptacle | Brass | Chrome | Metal | 8 A | 1 µm | 39.4 µin | J | Push-Pull | Crimp | ||
LEMO ECJ.2B.312.CYC | Polyetheretherketone (PEEK) | Gold | 12 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 312 | Male Pins, Receptacle | Brass | Chrome | Metal | 7 A | 1 µm | 39.4 µin | J | Push-Pull | Crimp | ||
LEMO ECJ.2B.308.CYB | Polyetheretherketone (PEEK) | Gold | 8 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 308 | Male Pins, Receptacle | Brass | Chrome | Metal | 10 A | 1 µm | 39.4 µin | J | Push-Pull | Crimp | ||
LEMO ECJ.2B.314.CLA | Polyetheretherketone (PEEK) | Gold | 14 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 314 | Male Pins, Receptacle | Brass | Chrome | Metal | 6.5 A | 1 µm | 39.4 µin | J | Push-Pull | |||
LEMO ECJ.2B.302.CYC | Polyetheretherketone (PEEK) | Gold | 2 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 302 | Male Pins, Receptacle | Brass | Chrome | Metal | 25 A | 1 µm | 39.4 µin | J | Push-Pull | Crimp | ||
LEMO ECJ.2B.310.CYB | Polyetheretherketone (PEEK) | Gold | 10 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 310 | Male Pins, Receptacle | Brass | Chrome | Metal | 8 A | 1 µm | 39.4 µin | J | Push-Pull | Crimp | ||
LEMO ECJ.2B.436.CJL | Polyetheretherketone (PEEK) | Gold | 6 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 436 | Receptacle, Female Sockets | Chrome | Metal | 2.5 A | J | Push-Pull | ||||||
LEMO ECJ.2B.314.CYC | Polyetheretherketone (PEEK) | Gold | 14 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 314 | Male Pins, Receptacle | Brass | Chrome | Metal | 6.5 A | 1 µm | 39.4 µin | J | Push-Pull | Crimp | ||
LEMO ECJ.2B.308.CLD | Polyetheretherketone (PEEK) | Gold | 8 | Front and Rear Side Nut | Shielded | Brass | -55 °C | 250 °C | IP50 | Silver | UL94 V-0 | 308 | Male Pins, Receptacle | Brass | Chrome | Metal | 10 A | 1 µm | 39.4 µin | J | Push-Pull | Solder | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.56 | |
Description
General part information
ECJ.2B Series
8 Position Circular Connector Receptacle, Male Pins Solder
