MSP2B68R00JS14E3
ActiveVishay Dale
MSP 2 B 68U 5% BA100 E3 /BA100
MSP2B68R00JS14E3
ActiveVishay Dale
MSP 2 B 68U 5% BA100 E3 /BA100
Description
General part information
MSP2B68R00JS14E3

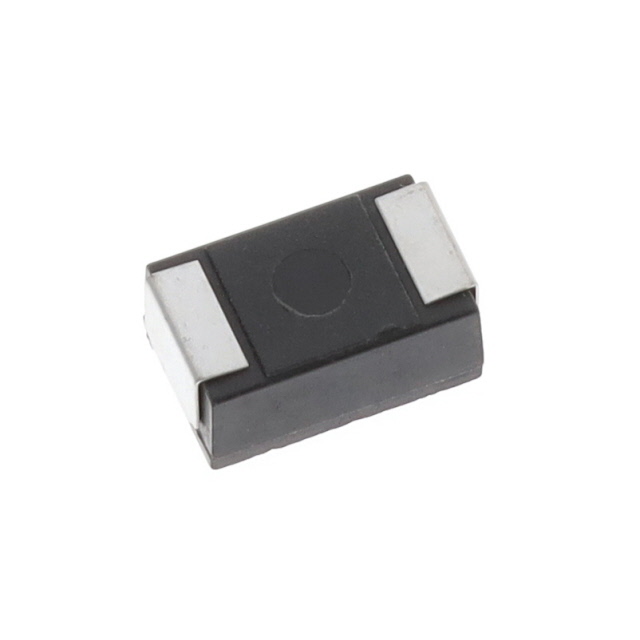

68 Ohms ±5% 2W Chip Resistor 4527 J-Lead Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | MSP2B68R00JS14E3 |
|---|---|
| Composition | Wirewound |
| Height - Seated (Max) | 0.205 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4527 J-Lead |
| Package Name | 4527 |
| Power (Watts) | 2 w |
| Resistance | 68 Ohm |
| Size / Dimension Length | 0.449 in |
| Size / Dimension Width | 0.276 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
