Description
General part information

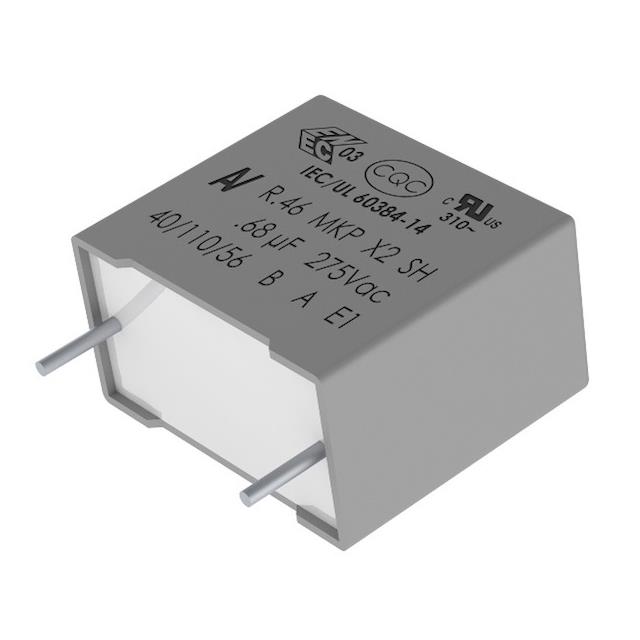

R46KF315050P0M
Film Capacitor
Technical Specifications
Parameters and characteristics for this part
| Specification | R46KF315050P0M |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 0.15 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.476 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 275 VAC |
| Voltage Rating - DC | 560 V |
