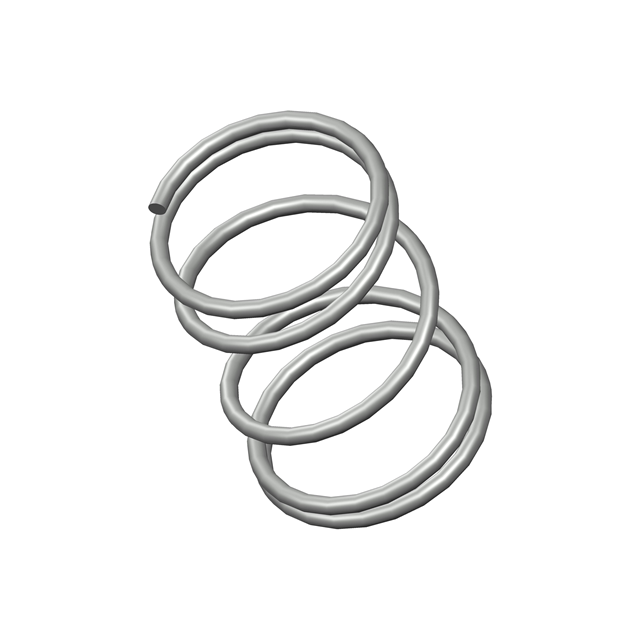

3877CS
ActiveCentury Spring Corp
COMP O= .468,L= .69,W= .034
3877CS
ActiveCentury Spring Corp
COMP O= .468,L= .69,W= .034
Description
General part information
3877CS
COMP O= .468,L= .69,W= .034
Technical Specifications
Parameters and characteristics for this part
| Specification | 3877CS |
|---|---|
| Diameter - Inside | 0.4 in |
| Diameter - Outside | 0.468 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 0.69 in |
| Material | Spring Steel |
| Rate (lbs/in) | 7.8 lbs/in |
| Type | Compression |
| Wire Diameter | 0.034 in |
