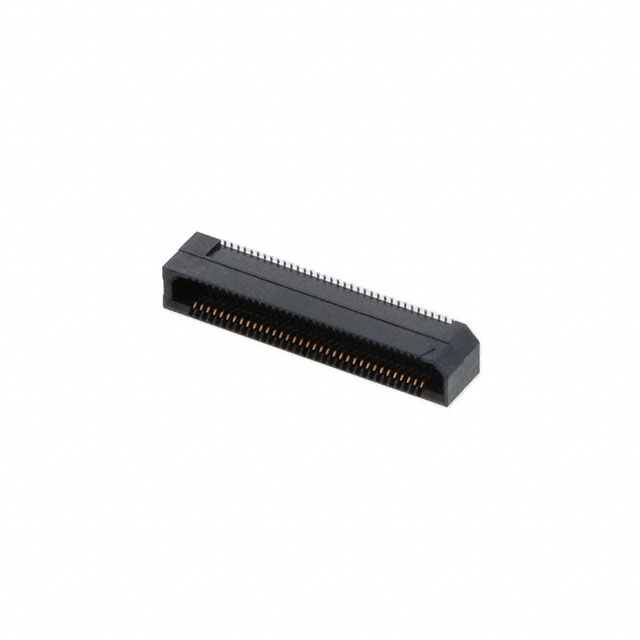

ERF8-035-07.0-L-DV-K-TR

Active

Samtec Inc.

CONN SOCKET 70POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 01 Datasheet +1

ERF8-035-07.0-L-DV-K-TR

Active

Samtec Inc.

CONN SOCKET 70POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-035-07.0-L-DV-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights	16 mm, 22 mm, 15 mm, 9 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-035 Series

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Features	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows	Height Above Board	Height Above Board
Samtec Inc. ERF8-035-07.0-L-DV-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-05.0-L-DV-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-07.0-S-DV-K-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Pick and Place	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-07.0-L-DV-K-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Pick and Place	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-05.0-S-DV-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-05.0-S-DV-L-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Latches	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-05.0-S-DV-L-K-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Latches Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
Samtec Inc. ERF8-035-07.0-L-DV-EGP-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-07.0-S-DV-TR	Outer Shroud Contacts Socket	30 Áin	0.76 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	2
Samtec Inc. ERF8-035-05.0-L-DV-K-TR	Outer Shroud Contacts Socket	10 Áin	0.25 Ám	Surface Mount	0.8 mm	0.031 in	70	Gold	Board Guide Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm			2	0.21 in	5.33 mm
