10-4-WN - 10-4-WN

10-4-WN

Active
3M

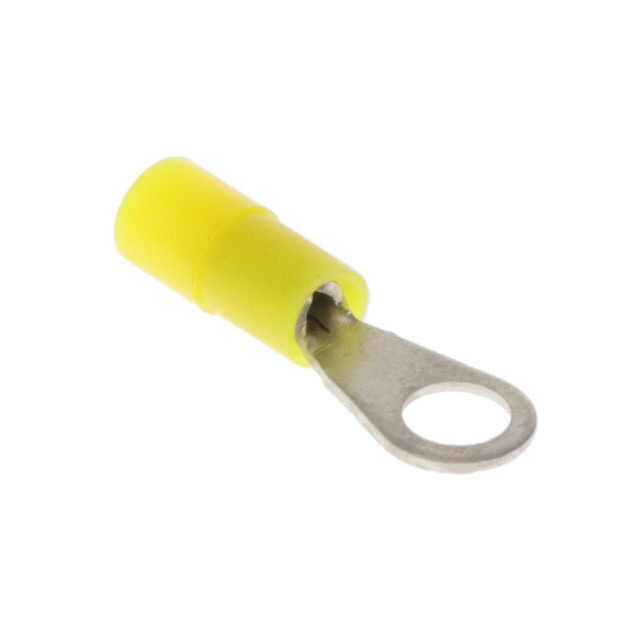

26-24 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
10-4-WN - 10-4-WN

10-4-WN

Active
3M

26-24 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification10-4-WN10-4 Series
Color-Yellow
Features-Brazed Seam
Insulation-Insulated
Material - Insulation-Nylon, Polyamide (PA)
Mounting Type-Free Hanging (In-Line)
null-
Stud/Tab Size-4 Stud
Terminal Type-Circular
Termination-Crimp
Wire Gauge-22 AWG
Wire Gauge-26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.81
10$ 0.70
25$ 0.64
50$ 0.61
100$ 0.58
250$ 0.53
500$ 0.50
1000$ 0.42
3000$ 0.38
NewarkEach 1000$ 0.47

10-4 Series

26-24 AWG NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMIN

PartWire Gauge [Min]Wire Gauge [Max]Mounting TypeStud/Tab SizeInsulationTerminal TypeMaterial - InsulationTerminationFeaturesColor
3M
10-4-WN
22 AWG
26 AWG
Free Hanging (In-Line)
4 Stud
Insulated
Circular
Nylon, Polyamide (PA)
Crimp
Brazed Seam
Yellow
3M
10-4-WN

Description

General part information

10-4 Series

Ring Terminal Connector 4 Stud Circular 22-26 AWG Crimp
