HSHM-H095B5-5CP2-TG30

Active

CONN HEADER 95POS 2MM PRESS-FIT

Search across all available documentation for this part.

Active

CONN HEADER 95POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN HEADER 95POS 2MM PRESS-FIT

Part	Current Rating (Amps)	Termination	Connector Usage	Number of Positions	Mounting Type	Contact Finish	Number of Rows	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Number of Positions Loaded
3M HSHM-H095B5-5CP2-TG30	1 A	Press-Fit	Backplane	95	Through Hole	Gold	5	B 19	0.76 Ám	30 Áin	-55 °C	125 °C	0.079 in	2 mm	Header, Male Pins	All
3M HSHM-H095B4-5CP1-TG30L	1 A	Press-Fit	Backplane	95	Through Hole	Gold	5	B 19	0.76 Ám	30 Áin	-55 °C	125 °C	0.079 in	2 mm	Header, Male Pins	All
3M HSHM-H095B5-5CP1-TG30L	1 A	Press-Fit	Backplane	95	Through Hole	Gold	5	B 19	0.76 Ám	30 Áin	-55 °C	125 °C	0.079 in	2 mm	Header, Male Pins	All
3M HSHM-H095B5-5CP2-TG30L	1 A	Press-Fit	Backplane	95	Through Hole	Gold	5	B 19	0.76 Ám	30 Áin	-55 °C	125 °C	0.079 in	2 mm	Header, Male Pins	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

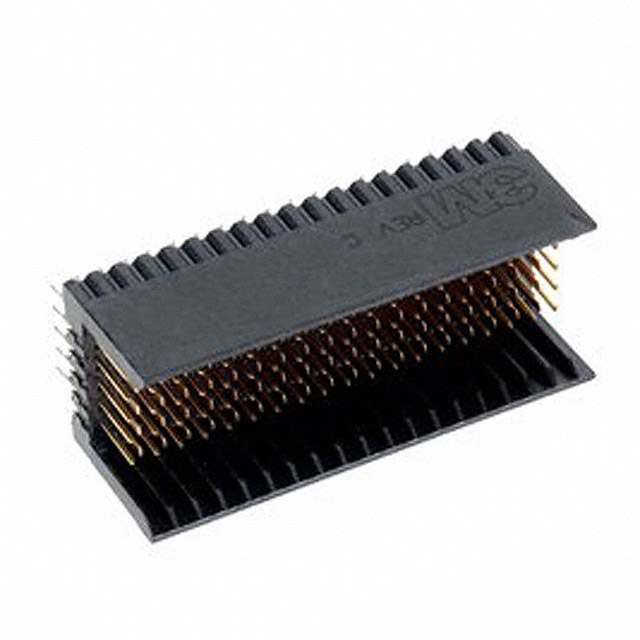

95 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole

Technical documentation and resources

No documents available
