RA 615L-N

Active

TELE Controls Inc

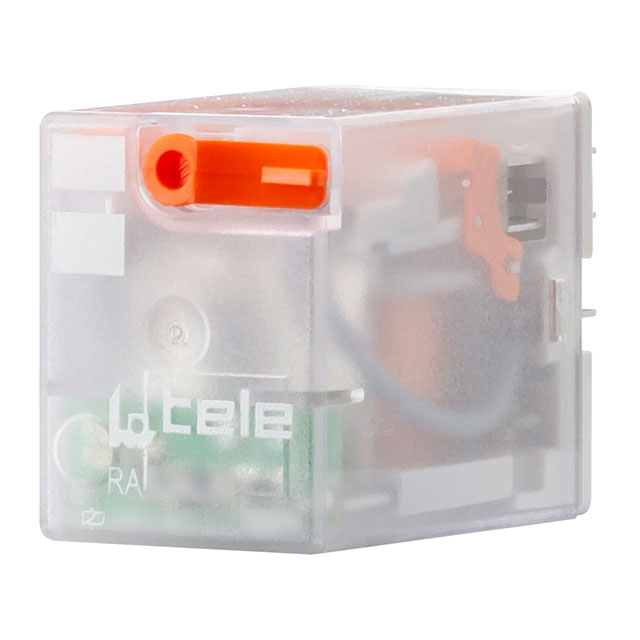

RELAY GEN PURPOSE DPDT 12A 115V

Search across all available documentation for this part.

Active

TELE Controls Inc

RELAY GEN PURPOSE DPDT 12A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	RA 615L-N

Coil Current	31.9 mA
Coil Resistance	3.61 kOhms
Coil Type	Non Latching
Coil Voltage	115 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Features	Test Button, Lighted Indicator
Mounting Type	Socketable
Must Operate Voltage	95 VAC
Must Release Voltage	23 VAC
Operate Time	10 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	250 VAC, 24 VDC
Termination Style	Plug In

RELAY GEN PURPOSE DPDT 12A 115V

Part	Relay Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Release Time	Contact Material	Must Release Voltage	Contact Form	Mounting Type	Coil Current	Coil Resistance	Termination Style	Must Operate Voltage	Switching Voltage	Coil Type	Features	Contact Rating (Current)
TELE Controls Inc RA 615L-N	General Purpose	115 VAC	-40 °C	55 °C	10 ms	8 ms	Silver Nickel (AgNi)	23 VAC	DPDT (2 Form C)	Socketable	31.9 mA	3.61 kOhms	Plug In	95 VAC	24 VDC, 250 VAC	Non Latching	Lighted Indicator, Test Button	12 A
