Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2702998 | 27029 Series |
|---|---|---|
| CCT (K) | - | 5000 K |
| Color | - | Cool, White |
| Configuration | - | Rectangle |
| CRI (Color Rendering Index) | - | 80 |
| Current - Test | - | 210 - 900 mA |
| Features | - | IP67, Adjustable Volume |
| Function - Audible | Alternating, Continuous | Multiple, Alternating, Continuous |
| Height | - | 30 mm |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lens Type | - | Flat |
| Lumens/Watt @ Current - Test | - | 95 - 108 lm/W |
| Luminous Flux @ Current/Temperature | - | 480 - 2330 lm |
| Number of Stacks | 1 | 1 |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Size / Dimension | - | 40 mm |
| Size / Dimension | - | 190 - 715 mm |
| Termination Style | - | Screw Terminal |
| Type | Acoustic Element | LED Module, Acoustic Element |
| Viewing Angle | - | 40 - 95 ° |
| Voltage - Forward (Vf) (Typ) | - | 24 V |
| Voltage - Supply | 24 VAC | 24 VAC |
27029 Series
LED MOD COOL WHT RECT 5000K
| Part | Lens Type | Color | Voltage - Forward (Vf) (Typ) | Type | CRI (Color Rendering Index) | Viewing Angle | CCT (K) | Height [z] | Features | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | Current - Test | Size / Dimension [y] | Size / Dimension [x] | Configuration | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Function - Audible | Number of Stacks | Voltage - Supply | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2702933 | Flat | Cool, White | 24 V | LED Module | 80 | 85 °, 95 ° | 5000 K | 30 mm | IP67 | 480 lm | 95 lm/W | 210 mA | 40 mm | 190 mm | Rectangle | |||||||
Phoenix Contact 2702997 | Acoustic Element | Adjustable Volume | IP65 - Dust Tight, Water Resistant | 50 °C | -30 ░C | Multiple | 1 | 24 VAC | Screw Terminal | |||||||||||||
Phoenix Contact 2702998 | Acoustic Element | IP65 - Dust Tight, Water Resistant | 50 °C | -30 ░C | Alternating, Continuous | 1 | 24 VAC | |||||||||||||||
Phoenix Contact 2702936 | Flat | Cool, White | 24 V | LED Module | 80 | 85 °, 95 ° | 5000 K | 30 mm | IP67 | 2280 lm | 106 lm/W | 900 mA | 40 mm | 715 mm | Rectangle | |||||||
Phoenix Contact 2702938 | Flat | Cool, White | 24 V | LED Module | 80 | 40 °, 80 ° | 5000 K | 30 mm | IP67 | 490 lm | 97 lm/W | 210 mA | 40 mm | 190 mm | Rectangle | |||||||
Phoenix Contact 2702942 | Flat | Cool, White | 24 V | LED Module | 80 | 40 °, 80 ° | 5000 K | 30 mm | IP67 | 2330 lm | 108 lm/W | 900 mA | 40 mm | 715 mm | Rectangle | |||||||
Phoenix Contact 2702935 | Flat | Cool, White | 24 V | LED Module | 80 | 85 °, 95 ° | 5000 K | 30 mm | IP67 | 1680 lm | 104 lm/W | 40 mm | 540 mm | Rectangle | ||||||||
Phoenix Contact 2702939 | Flat | Cool, White | 24 V | LED Module | 80 | 40 °, 80 ° | 5000 K | 30 mm | IP67 | 1120 lm | 106 lm/W | 40 mm | 365 mm | Rectangle | ||||||||
Phoenix Contact 2702934 | Flat | Cool, White | 24 V | LED Module | 80 | 85 °, 95 ° | 5000 K | 30 mm | IP67 | 1080 lm | 102 lm/W | 40 mm | 365 mm | Rectangle | ||||||||
Phoenix Contact 2702941 | Flat | Cool, White | 24 V | LED Module | 80 | 40 °, 80 ° | 5000 K | 30 mm | IP67 | 1720 lm | 107 lm/W | 40 mm | 540 mm | Rectangle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
27029 Series

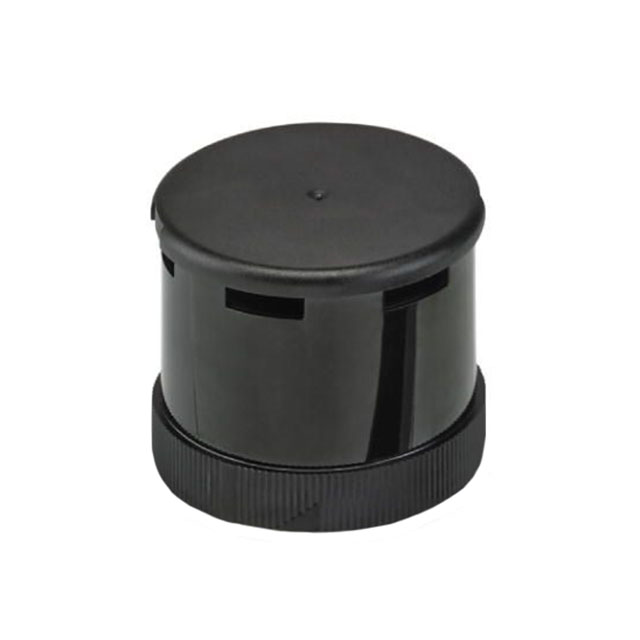

Stack Light Acoustic Element
Documents
Technical documentation and resources
