1727040189

Active

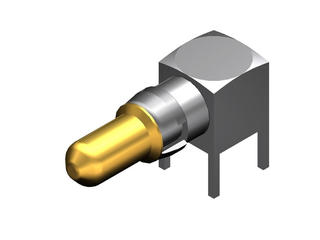

FCT HIGH POWER CONTACT, MALE, RIGHT-ANGLE, PCB THROUGH HOLE, 0.80ΜM GOLD MATING PLATING, 5.00ΜM TIN TERMINATION PLATING, 40.0A, 5.08MM FOUR PRONGED FOOTPRINT

Find alt

Alpha

1727040189

Active

Molex

FCT HIGH POWER CONTACT, MALE, RIGHT-ANGLE, PCB THROUGH HOLE, 0.80ΜM GOLD MATING PLATING, 5.00ΜM TIN TERMINATION PLATING, 40.0A, 5.08MM FOUR PRONGED FOOTPRINT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

172704 Series

FCT Plastic Dust Cap for Size 2 Female D-sub, Red

Technical Specifications

Parameters and characteristics for this part

Specification	1727040189

Contact Finish	Gold
Contact Finish Thickness	31.5 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Termination	PCB, Solder
Contact Type	Right Angle, Male Pin
Termination Finish	Tin
Termination Finish Thickness	200 µin
Type	Power

172704 Series

FCT Plastic Dust Cap for Size 2 Female D-sub, Red

...

Part	Contact Form	Contact Termination	Contact Type	Contact Finish	Features	Contact Material	Wire Gauge	Type	Contact Finish Thickness	Current Rating	Finish	Shell Material	Connector Style	Connector Type	Number of Positions (Standard)	Position Types	Number of Positions (Special)	Number of Positions (Total)	Termination	Mounting Type	Flange Feature	Shell Size	Connector Layout	Part Code	Material Flammability Rating	Number of Rows	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Color	Note	Number of Positions	Compatible D-Sub Size	Accessory Type	Compatible Shell Size	Cable Type	Material	Hardware	Plating	Shielding	Primary Material	Cable Exit Angle	For Use With/Related Products
Molex 1727040134	Machined	Solder Cup	Male Pin	Gold	Insulator PTFE	Copper Alloy	20 AWG	Voltage	51.2 µin
Molex 1727040040			Coax or Power Signal	Gold		Brass	20 AWG		3.94 µin	5 A	Tin Plated	Steel	Combo D-Sub	Female Sockets Receptacle	5	Coax Power	4	9	Solder Cup	Panel Mount	Housing Shell (Unthreaded)	3	B DB	9W4	UL94 V-0	2	Polybutylene Terephthalate (PBT)	-55 °C	130 °C	Green
Molex 1727040001			Signal		Grounding Indents						Tin Plated	Steel	D-Sub	Plug for Male Contacts						Free Hanging (In-Line)	Housing Shell (Unthreaded)	2	A DA			2	Glass Filled Nylon Polyamide (PA)	-55 °C	115 °C	Black	Contacts Not Included	15
Molex 1727040121																														Black		37 pos	37pos HD62pos	Two Piece Backshell	C	Round	Acrylonitrile Butadiene Styrene (ABS)	Assembly Hardware Cable Clamp	Nickel	Shielded	Plastic	180 °
Molex 1727040009			Signal		Grounding Indents						Tin Plated	Steel	D-Sub	Plug for Male Contacts						Free Hanging (In-Line)	Housing Shell (Unthreaded)	1	DE E			2	Glass Filled Nylon Polyamide (PA)	-55 °C	115 °C	Black	Contacts Not Included	9
Molex 1727040087																																25		Cap (Cover) Dust									D-Sub Connectors Male
Molex 1727040038			Coax Coax or Power Power								Tin Plated	Steel	Combo D-Sub	Receptacle for Female Contacts		Coax Power				Free Hanging (In-Line)	Housing Shell (Unthreaded)	4	C DC	8W8		1						8
Molex 1727040099					Mating Screws 4-40																									Silver		25	25pos HD44pos	Two Piece Backshell	B	Round	Zinc Die Cast	Assembly Hardware Cable Clamp Strain Relief	Nickel	Shielded	Metal	45 °
Molex 1727040008			Signal								Tin Plated	Steel	D-Sub	Receptacle for Female Contacts						Free Hanging (In-Line)	Housing Shell (Unthreaded)	5	D DD			3	Glass Filled Nylon Polyamide (PA)	-55 °C	115 °C	Black	Contacts Not Included	50
Molex 1727040010			Signal								Tin Plated	Steel	D-Sub	Receptacle for Female Contacts						Free Hanging (In-Line)	Housing Shell (Unthreaded)	1	DE E			2	Glass Filled Nylon Polyamide (PA)	-55 °C	115 °C	Black	Contacts Not Included	9
