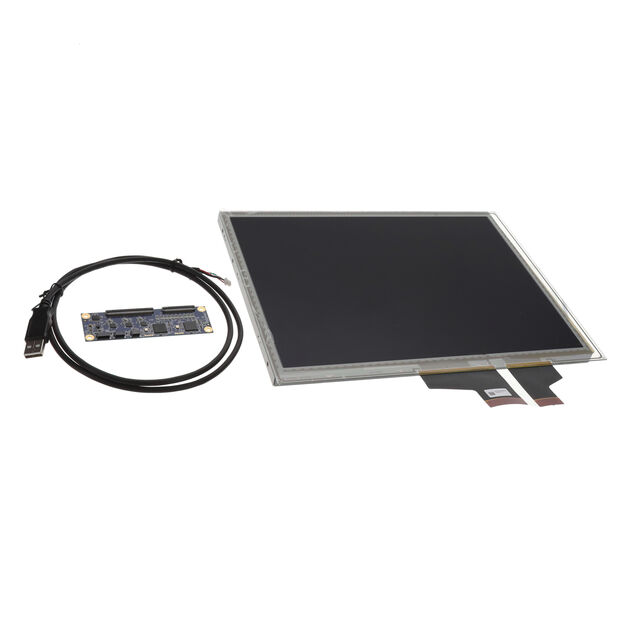

KDA-121OB-18056S-A

Active

Kyocera International, Inc.

TFT, 1024X768, 12.1", AWV, OPTIC

Search across all available documentation for this part.

Active

Kyocera International, Inc.

TFT, 1024X768, 12.1", AWV, OPTIC

Technical Specifications

Parameters and characteristics commom to parts in this series

TFT, 1024X768, 12.1", AWV, OPTIC

Part	Backlight	Display Type	Touchscreen	Graphics Color	Interface	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [x]	Viewing Area [y]	Dot Pixels [x]	Dot Pixels [y]	Display Mode
Kyocera International, Inc. KDA-121OB-18056S-A	LED - White	TFT - Color	Capacitive	Blue, Green, Red	I2C, LVDS, USB	12.1 in	307.34 mm	253 mm	191.5 mm	1024	768	Transmissive
Kyocera International, Inc. KDA-121OB-18079S-A	LED - White	TFT - Color	Capacitive	Blue, Green, Red	I2C, LVDS, USB	12.1 in	307.34 mm	268.12 mm	170.2 mm	1280	800	Transmissive
Kyocera International, Inc. KDA-121OB-18055S-A	LED - White	TFT - Color	Capacitive	Blue, Green, Red	I2C, LVDS, USB	12.1 in	307.34 mm	261.12 mm	170.2 mm	1280	800	Transmissive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 612.64

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, LVDS, USB 12.1" (307.34mm) 1024 x 768 (XGA)
