94HAB10WT

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	94HAB10WT	94HAB10 Series

Actuator Level	Flush, Recessed	Flush, Recessed
Actuator Type	Rotary for Tool	Rotary for Tool
Body Material	Plastic	Plastic
Circuit	BCD	BCD
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	100 mA	100 mA
Features	Sealed	Sealed
Height Above Board	0.225 in	0.225 - 0.25 in
Height Above Board	5.72 mm	5.72 - 6.35 mm
Height Above Board	-	10.16 mm
Height Above Board	-	0.4 "
Length	0.39 "	0.39 "
Length	9.91 mm	9.91 - 10.92 mm
Length	-	0.43 in
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle
Number of Positions	10	10
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	J Lead, PC Pin, Gull Wing
Voltage Rating	50 V	50 V
Washable	True	True

SWITCH DIP N.O./N.C. SP10T 10 FLUSH SCREWDRIVER 0.03A 30VDC J-LEAD 10000CYCLES 2.54MM SMD TUBE

Part	Length	Length	Actuator Type	Termination Style	Voltage Rating	Circuit	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Height Above Board	Height Above Board	Features	Contact Material	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Contact Finish	Actuator Level	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Length [x]
Grayhill Inc. 94HAB10JT	0.39 "	9.91 mm	Rotary for Tool	J Lead	50 V	BCD	0.1 in	Full	2.54 mm	10000 Steps	0.25 in	6.35 mm	Sealed	Copper Alloy	Surface Mount	10	85 °C	-40 °C	Plastic	Gold	Flush, Recessed	100 mA
Grayhill Inc. 94HAB10RAT		10.92 mm	Rotary for Tool	PC Pin	50 V	BCD	0.1 in	Full	2.54 mm	10000 Steps			Sealed	Copper Alloy	Through Hole, Right Angle	10	85 °C	-40 °C	Plastic	Gold	Flush, Recessed	100 mA	10.16 mm	0.4 "	0.43 in
Grayhill Inc. 94HAB10WT	0.39 "	9.91 mm	Rotary for Tool	Gull Wing	50 V	BCD	0.1 in	Full	2.54 mm	10000 Steps	0.225 in	5.72 mm	Sealed	Copper Alloy	Surface Mount	10	85 °C	-40 °C	Plastic	Gold	Flush, Recessed	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

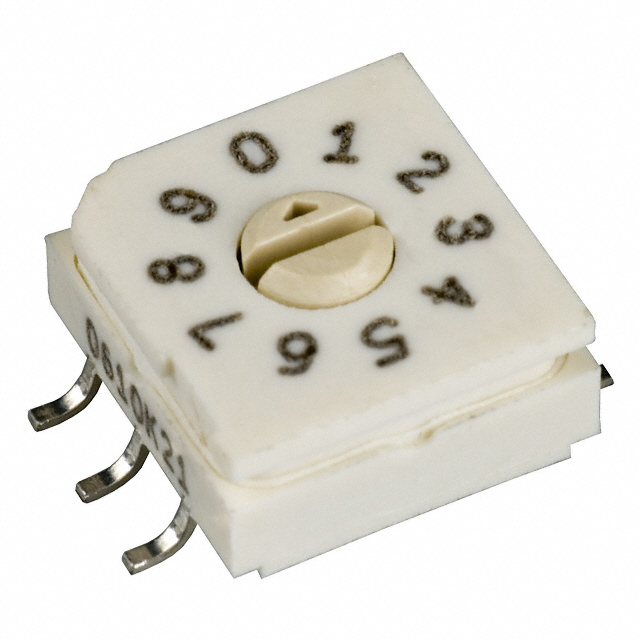

Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 50VDC
