1931 BK003

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, PORTABLE CORD, UNSHIELDED, 2 CONDUCTOR, 18 AWG, 0.82 MM², 250 FT, 76.2 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, PORTABLE CORD, UNSHIELDED, 2 CONDUCTOR, 18 AWG, 0.82 MM², 250 FT, 76.2 M

Technical Specifications

Parameters and characteristics for this part

Specification	1931 BK003

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Black
Length	15.24 m, 3.05 m
Length	10 ft
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Voltage	300 V
Wire Gauge	18 AWG

MULTICONDUCTOR CABLE, PORTABLE CORD, UNSHIELDED, 2 CONDUCTOR, 18 AWG, 0.82 MM², 250 FT, 76.2 M

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Material	Jacket Color	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Material	Voltage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length
ALPHA WIRE 1931 BK003	0.864 mm	0.034 in	2	Copper, Bare	Black	18 AWG	30.5 m	50 ft, 100 ft	41 strands	34 AWG	3.05 m, 15.24 m	90 °C	-40 °C	Multi-Conductor	Polyethylene (PE)	300 V	Rubber	5.99 mm	0.236 in	10 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

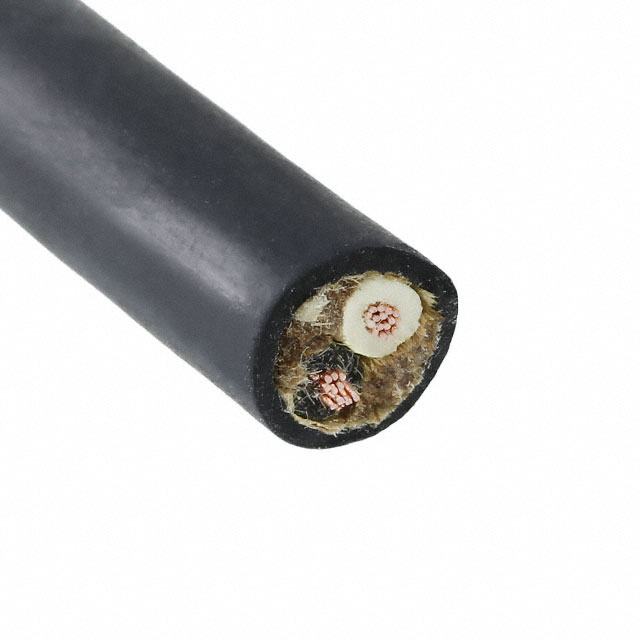

The 1931 BK003 is a 2-core Unshielded Cable with bare copper conductor, EPDM rubber insulator and a black chlorinated polyethylene (CPE) jacket.
