Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-OUT07A1 | X-NUCLEO-OUT07A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Power Distribution Switch (Load Switch) | Power Distribution Switch (Load Switch) |
| Platform | Nucleo | Nucleo |
| Type | Power Management | Power Management |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-OUT07A1 Series
Industrial digital output expansion board based on IPS4260LM for STM32 Nucleo
| Part | Contents | Function | Platform | Type |
|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT07A1 | ||||
STMicroelectronics X-NUCLEO-OUT07A1 | ||||
STMicroelectronics X-NUCLEO-OUT07A1 | Board(s) | Power Distribution Switch (Load Switch) | Nucleo | Power Management |
Description
General part information
X-NUCLEO-OUT07A1 Series

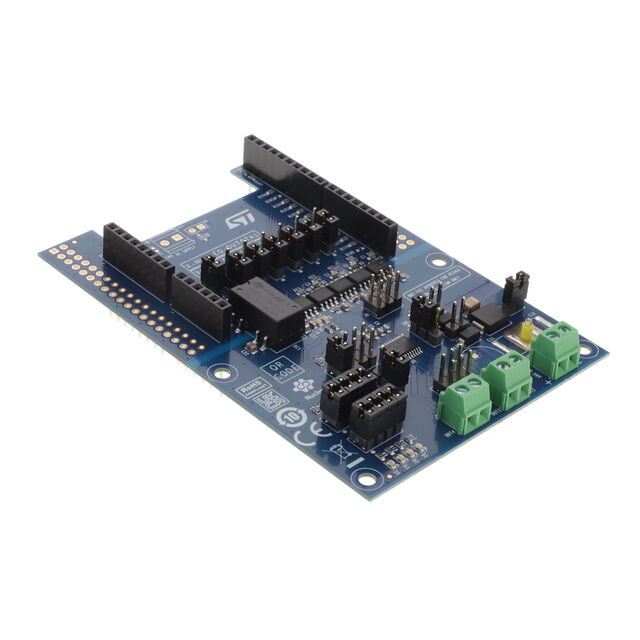

The X-NUCLEO-OUT07A1 industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS4260LM quad low-side smart power solid state relay, in a digital output module connected to 0.5 A industrial loads.
Dual channels and single channel configurations are possible by proper setting of J9 and J10 (see below).
The X-NUCLEO-OUT07A1 interfaces with the microcontroller on the STM32 Nucleo via STISO620 and STISO621 and Arduino®R3 connectors. The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.
