1869169

Active

Phoenix Contact

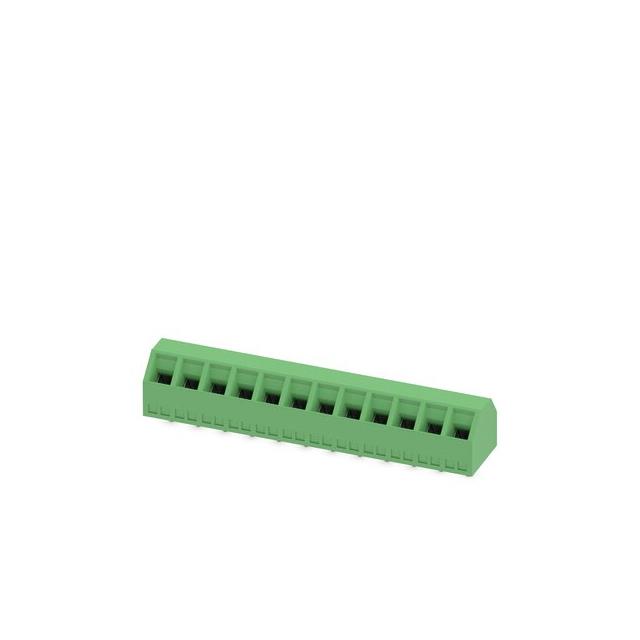

CONN PC TERMINAL BLOCK 12 POS 5MM SOLDER THRU-HOLE 17.5A

Search across all available documentation for this part.

Active

Phoenix Contact

CONN PC TERMINAL BLOCK 12 POS 5MM SOLDER THRU-HOLE 17.5A

Technical Specifications

Parameters and characteristics commom to parts in this series

Fixed Terminal Blocks SMKDSN 1.5/ 9

Part	Wire Termination	Pitch [x]	Pitch [x]	Number of Levels	Housing Material	Wire Gauge [Min]	Wire Gauge [Max]	Current	Screw Thread	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Mounting Type	Color	Mating Orientation	Mating Orientation	Positions Per Level	Voltage
Phoenix Contact 1869169	Screw - Rising Cage Clamp	5 mm	0.197 in	1	Polyamide (PA), Nylon	14 AWG	30 AWG	10 A	M3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Through Hole	Green	125 °	55 °	12	300 V
Phoenix Contact 1869130	Screw - Rising Cage Clamp	5 mm	0.197 in	1	Polyamide (PA), Nylon	14 AWG	30 AWG	10 A	M3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Through Hole	Green	125 °	55 °	9	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks SMKDSN 1.5/ 9
