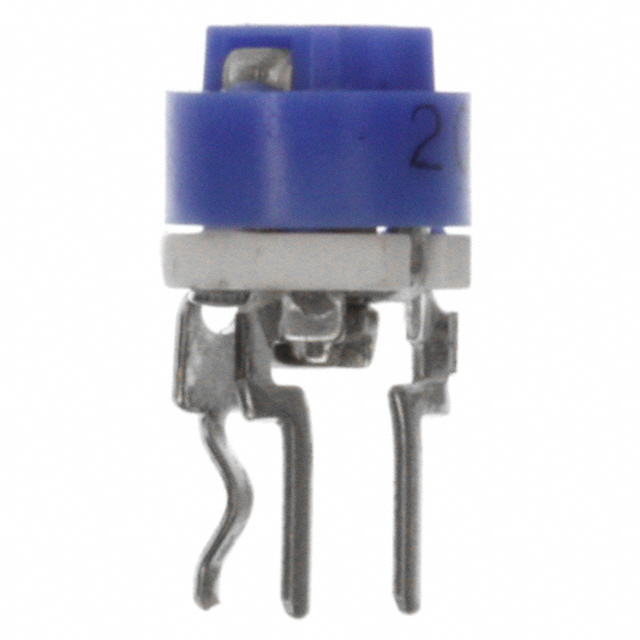

EVM-5AGA00B25
ObsoletePanasonic Electronic Components
TRIMMER 200K OHM 0.3W PC PIN TOP
EVM-5AGA00B25
ObsoletePanasonic Electronic Components
TRIMMER 200K OHM 0.3W PC PIN TOP
Description
General part information
EVM-5AGA00B25
200 kOhms 0.3W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top and Bottom Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | EVM-5AGA00B25 |
|---|---|
| Adjustment Type | Top, Bottom Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 300 mW |
| Resistance | 200 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Diameter | 0.217 in |
| Size / Dimension Shape | Round |
| Temperature Coefficient | 200 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 25 % |
