MAX98388EVSYS#

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR MAX98388

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR MAX98388

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX98388EVSYS#	MAX98388 Series

Board Type	Fully Populated	Fully Populated
Max Output Power x Channels @ Load	9.1 W, 1	1 - 9.1 W
Max Output Power x Channels @ Load	-	1 channel
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	1-Channel (Mono)	1-Channel (Mono)
Package / Case	-	16-WFBGA, WLBGA
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	16-WLP (1.64x1.79)
Type	-	Class D
Utilized IC / Part	MAX98388	MAX98388
Voltage - Supply [Max]	10 V	5.5 - 10 V
Voltage - Supply [Min]	2.3 V	2.3 - 5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 210.53

DIGITAL INPUT SLIM CLASS-D AMPLI

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load	Mounting Type	Package / Case	Type	Utilized IC / Part	Supplied Contents	Board Type
Analog Devices Inc./Maxim Integrated MAX98388EWE+T	3 V, 5 V	5.5 V, 10 V	16-WLP (1.64x1.79)	1-Channel (Mono)	85 °C	-40 °C	1 channel, 1 channel	3.87 W, 8.02 W	Surface Mount	16-WFBGA, WLBGA	Class D
Analog Devices Inc./Maxim Integrated MAX98388EVSYS#	2.3 V	10 V		1-Channel (Mono)				1, 9.1 W				MAX98388	Board(s)	Fully Populated

General part information

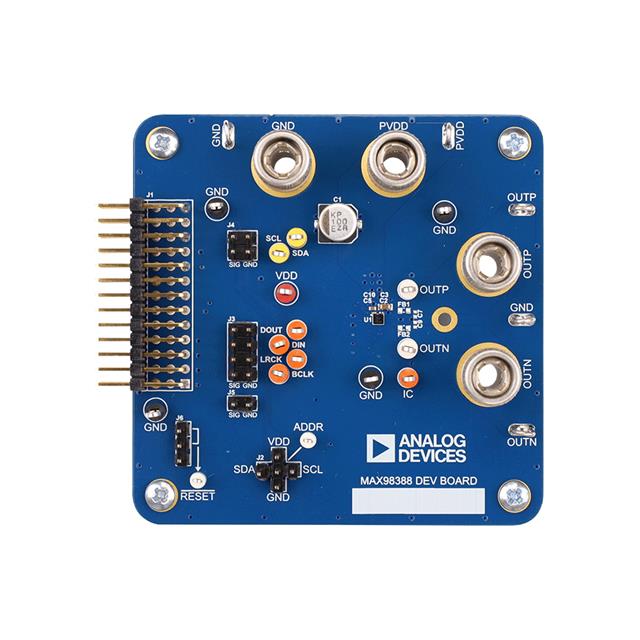

MAX98388 - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
