100720C0

Active

LAPP

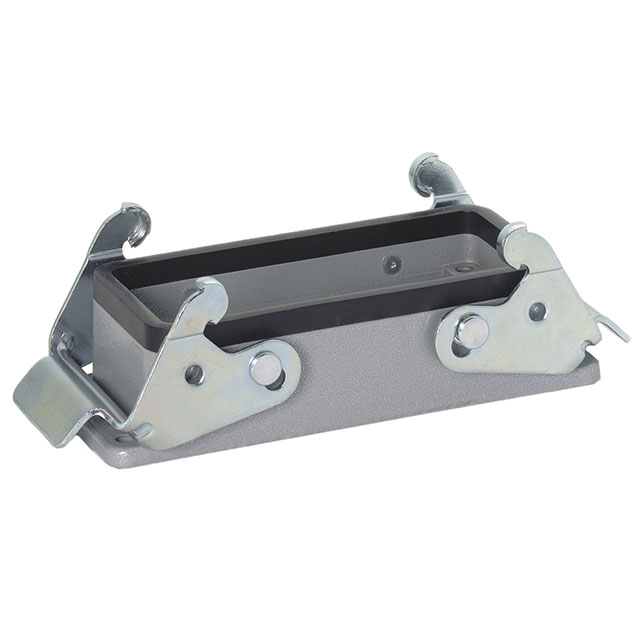

CONN BASE HB16 PNL MNT DLVR

Search across all available documentation for this part.

Active

LAPP

CONN BASE HB16 PNL MNT DLVR

Technical Specifications

Parameters and characteristics for this part

Specification	100720C0

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB16
Size / Dimension [x]	4.449 "
Size / Dimension [x]	113 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	27.8 mm
Size / Dimension [z]	1.094 in
Style	Bottom Entry

CONN BASE HB16 PNL MNT DLVR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Housing Material	Lock Location	Style	Housing Finish	Housing Color	Size	Connector Type
LAPP 100720C0	125 °C	-40 °C	4.449 "	43 mm	113 mm	27.8 mm	1.094 in	1.693 in	IP65 - Dust Tight, Water Resistant	Aluminum Alloy	Locking Clip (2) on Base Bottom	Bottom Entry	Powder Coated	Gray	HB16	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry HB16 IP65 - Dust Tight, Water Resistant
