PA4320.334NLT
ActivePulse Electronics
FIXED IND 330UH 1.7A 340MOHM SMD
PA4320.334NLT
ActivePulse Electronics
FIXED IND 330UH 1.7A 340MOHM SMD
Description
General part information
PA4320.334NLT

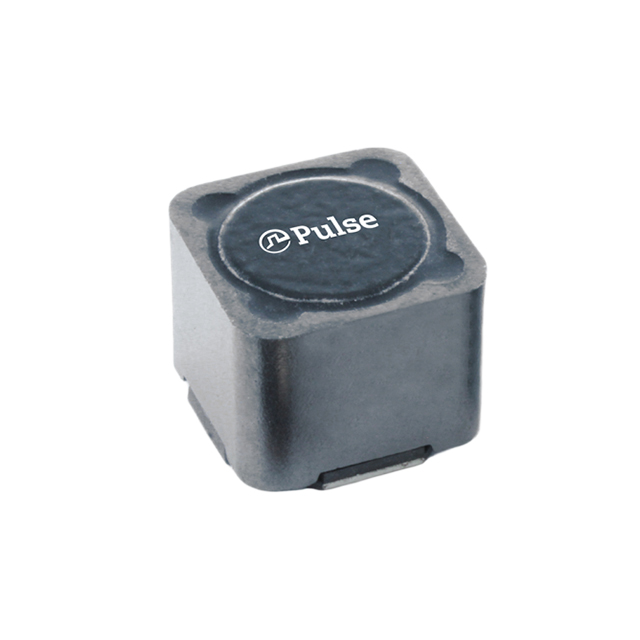

330 µH Shielded Wirewound Inductor 1.7 A 340mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4320.334NLT |
|---|---|
| Current - Saturation (Isat) | 1.7 A |
| Current Rating | 1.7 A |
| DC Resistance (DCR) (Max) | 340 mOhm |
| Height - Seated (Max) | 0.402 in |
| Inductance | 330 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 20 %, 10 % |
| Type | Wirewound |
