RC12JT1K50
ObsoleteStackpole Electronics Inc
RES 1.5K OHM 5% 1/2W AXIAL
RC12JT1K50
ObsoleteStackpole Electronics Inc
RES 1.5K OHM 5% 1/2W AXIAL
Description
General part information
RC12JT1K50

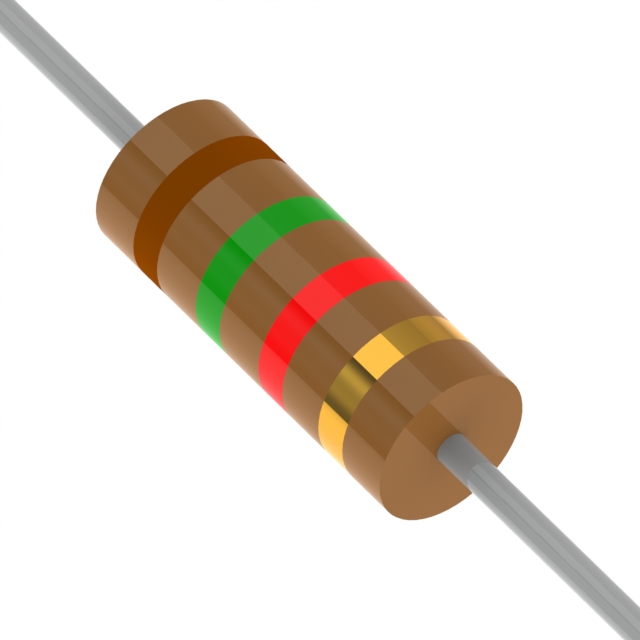

1.5 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Non-Inductive, Pulse Withstanding Carbon Composition
Technical Specifications
Parameters and characteristics for this part
| Specification | RC12JT1K50 |
|---|---|
| Composition | Carbon Composition |
| Features | Non-Inductive, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 1.5 kOhms |
| Size / Dimension Diameter | 0.142 in |
| Size / Dimension Length | 0.374 in |
| Tolerance | 5 % |
