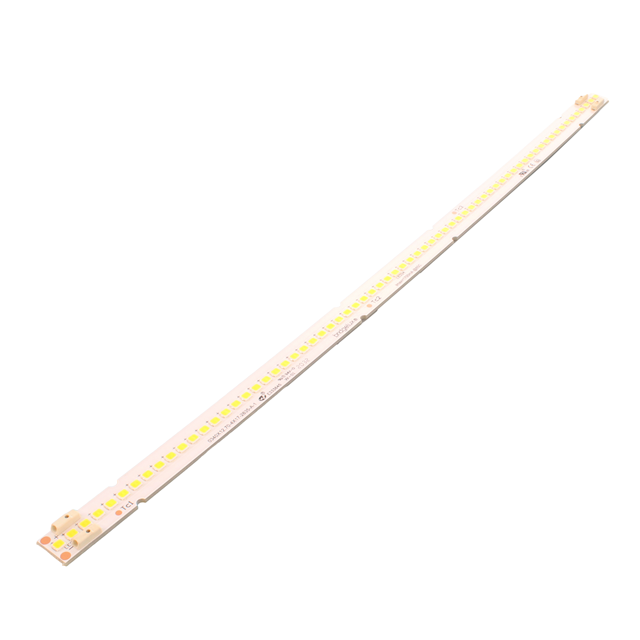

BXEB-L0340U-30E0750-C-C3
ActiveBRIDGELUX
LED MOD EB SER WH LNR STR 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXEB-L0340U-30E0750-C-C3
ActiveBRIDGELUX
LED MOD EB SER WH LNR STR 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXEB-L0340U-30E0750-C-C3 | BXEB-L0340 Series |
|---|---|---|
| CCT (K) | 3000 K | 3000 - 4000 K |
| Color | White, Warm | Cool, White, Neutral, Warm |
| Configuration | Linear Light Strip | Linear Light Strip |
| CRI (Color Rendering Index) | 80 | 80 |
| Current - Max [Max] | 1.7 A | 1.7 A |
| Features | With Connector | With Connector |
| Height [z] | 4.3 mm | 4.3 mm |
| Lens Type | Flat | Flat |
| Lumens/Watt @ Current - Test | 186 lm/W | 186 - 200 lm/W |
| Luminous Flux @ Current/Temperature | 1425 lm | 1425 - 1530 lm |
| Size / Dimension [x] | 340 mm | 340 mm |
| Size / Dimension [y] | 0.5 in | 0.5 in |
| Type | LED Module | LED Module |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 10.9 V | 10.9 V |
BXEB-L0340 Series
LED MOD EB SER WH LNR STRP 5000K
| Part | Lens Type | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | Viewing Angle | Lumens/Watt @ Current - Test | Size / Dimension [y] | Size / Dimension [x] | Type | CRI (Color Rendering Index) | Height [z] | Current - Max [Max] | Features | Color | Configuration | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXEB-L0340U-50E0750-C-C3 | Flat | 1530 lm | 10.9 V | 120 ° | 200 lm/W | 0.5 in | 340 mm | LED Module | 80 | 4.3 mm | 1.7 A | With Connector | Cool, White | Linear Light Strip | |
BRIDGELUX BXEB-L0340U-40E0750-C-C3 | Flat | 1530 lm | 10.9 V | 120 ° | 200 lm/W | 0.5 in | 340 mm | LED Module | 80 | 4.3 mm | 1.7 A | With Connector | Neutral, White | Linear Light Strip | 4000 K |
BRIDGELUX BXEB-L0340U-35E0750-C-C3 | Flat | 1425 lm | 10.9 V | 120 ° | 186 lm/W | 0.5 in | 340 mm | LED Module | 80 | 4.3 mm | 1.7 A | With Connector | Warm, White | Linear Light Strip | 3500 K |
BRIDGELUX BXEB-L0340U-30E0750-C-C3 | Flat | 1425 lm | 10.9 V | 120 ° | 186 lm/W | 0.5 in | 340 mm | LED Module | 80 | 4.3 mm | 1.7 A | With Connector | Warm, White | Linear Light Strip | 3000 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.81 | |
| 10 | $ 4.82 | |||
| 80 | $ 3.94 | |||
| 440 | $ 3.32 | |||
| 945 | $ 3.05 | |||
| 2000 | $ 2.92 | |||
Description
General part information
BXEB-L0340 Series
LED Lighting COBs Engines Modules LED Module EB Series™ Slim Gen 3 White, Warm Linear Light Strip
