DC0001/06-TI900-0.12-2A
Activet-Global Technology

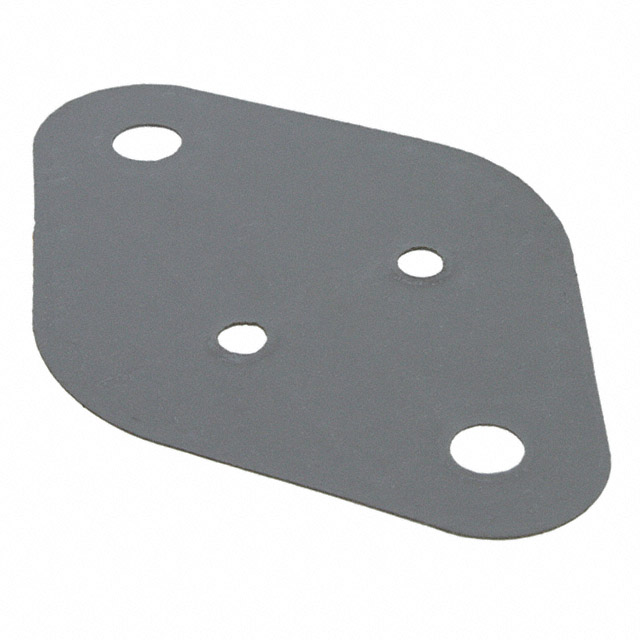

THERM PAD 41.91X28.96MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0001/06-TI900-0.12-2A
Activet-Global Technology
THERM PAD 41.91X28.96MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0001/06-TI900-0.12-2A | DC0001/06 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | Viscose | Viscose |
| Color | White | White, Gray, Yellow, Red |
| Material | Silicone | Silicone |
| Outline [x] | 41.91 mm | 41.91 mm |
| Outline [y] | 28.96 mm | 28.96 mm |
| Shape | Rhombus | Rhombus |
| Shelf Life | 24 Months | 12 - 24 Months |
| Shelf Life Start | - | Date of Purchase |
| Thermal Conductivity | 1.8 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.254 - 0.305 mm |
| Thickness | - | 0.01 - 0.012 " |
| Thickness | - | 0.0039 - 0.079 in |
| Thickness | - | 0.1 - 2 mm |
| Thickness [x] | 0.005 in | 0.005 in |
| Thickness [x] | 0.127 mm | 0.127 mm |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | TO-3 | TO-3 |
DC0001/06 Series
THERM PAD 41.91X28.96MM W/ADH
| Part | Shape | Adhesive | Thermal Conductivity | Outline [y] | Outline [x] | Usage | Type | Color | Backing, Carrier | Material | Thickness [x] | Thickness [x] | Shelf Life | Shelf Life Start | Thickness [custom] | Thickness [custom] | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0001/06-TI900-0.12-2A | Rhombus | Adhesive - Both Sides | 1.8 W/m-K | 28.96 mm | 41.91 mm | TO-3 | Die-Cut Pad, Sheet | White | Viscose | Silicone | 0.005 in | 0.127 mm | 24 Months | |||||
t-Global Technology DC0001/06-TG-A486G-0.3-2A | Rhombus | Adhesive - Both Sides | 6 W/m-K | 28.96 mm | 41.91 mm | TO-3 | Die-Cut Pad, Sheet | Gray | 12 Months | Date of Purchase | 0.305 mm | 0.012 " | ||||||
t-Global Technology DC0001/06-TG-A373F-0.25-2A | Rhombus | Adhesive - Both Sides | 1.4 W/m-K | 28.96 mm | 41.91 mm | TO-3 | Die-Cut Pad, Sheet | Yellow | 12 Months | 0.254 mm | 0.01 in | |||||||
t-Global Technology DC0001/06-TG-AH482-2.0-0 | Rhombus | 2.2 W/m-K | 28.96 mm | 41.91 mm | TO-3 | Die-Cut Pad, Sheet | Red | 24 Months | 0.079 in | 2 mm | ||||||||
t-Global Technology DC0001/06-TG-A482K-0.1-0 | Rhombus | 2.3 W/m-K | 28.96 mm | 41.91 mm | TO-3 | Die-Cut Pad, Sheet | Red | Silicone | 24 Months | Date of Purchase | 0.0039 in | 0.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 72 | $ 2.47 | |
Description
General part information
DC0001/06 Series
Thermal Pad White 41.91mm x 28.96mm Rhombus Adhesive - Both Sides
