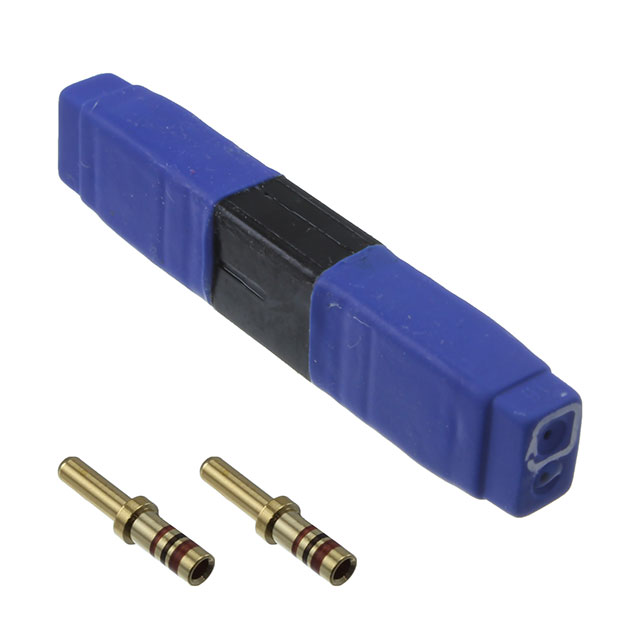

TJSE20510

Active

AMPHENOL PCD

ELECTRONIC SPICE, SIZE 20, 2 CONTACTS, POLYETHERIMIDE, -65 °C TO +200 °C

Search across all available documentation for this part.

Active

AMPHENOL PCD

ELECTRONIC SPICE, SIZE 20, 2 CONTACTS, POLYETHERIMIDE, -65 °C TO +200 °C

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TJSE20510	TJSE20 Series

	-	-
Contact Size	20	20
Module Capacity	2	2 - 4
Size / Dimension [x]	2 in	2 in
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	6.99 mm	6.99 mm
Size / Dimension [y]	0.275 in	0.275 in
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.16 mm	10.16 mm
Type	-	Wire Splice, Resistor, Diode, Capacitor, Diode Resistor

CONN WIRE SPLICE RES SZ20

...

Part	Module Capacity	Contact Size	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
AMPHENOL PCD TJSE20108	2	20	Resistor, Wire Splice
AMPHENOL PCD TJSE20811	4	20	Resistor, Wire Splice
AMPHENOL PCD TJSE20535	2	20		6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20817	4	20	Resistor, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20810	4	20	Resistor, Wire Splice
AMPHENOL PCD TJSE20344
AMPHENOL PCD TJSE20707	4	20	Diode, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20828	2	20	Resistor, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20555		20	Resistor, Wire Splice
AMPHENOL PCD TJSE20554	4	20	Resistor, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Wire Splice, Fuse Contact Size 20
