SSF-LXH4RA5YD

Active

Lumex Opto/Components Inc.

LED CBI 5MM YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSF-LXH4RA5YD

Active

Lumex Opto/Components Inc.

LED CBI 5MM YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.68
		10	$ 1.06
		100	$ 0.75
		500	$ 0.63
		1000	$ 0.59
		2000	$ 0.56
		5000	$ 0.53
		10000	$ 0.51

Description

General part information

SSF-LXH4 Series

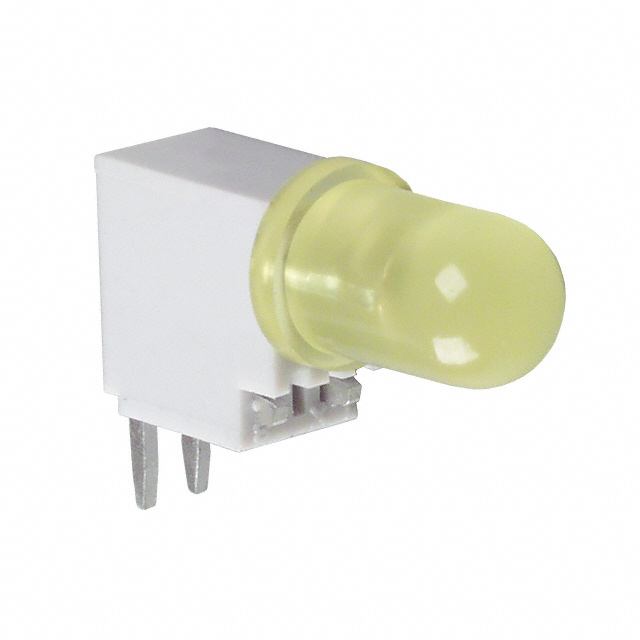

LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH4RA5YD	SSF-LXH4 Series

Color	Yellow	Green, Red, Yellow, Blue
Configuration	Single	Single
Current	-	6 - 12 mA
Lens Size	T-1 3/4	T-1 3/4, T-1
Lens Size	5 mm	3 - 5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	30 mcd	6 - 80 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2.1 V	1.7 - 5 V
Wavelength - Peak	585 nm	430 - 660 nm

SSF-LXH4 Series

LED CBI 5MM GRN RA PC MNT

Part	Voltage Rating	Configuration	Current	Lens Style	Color	Wavelength - Peak	Millicandela Rating	Lens Size	Lens Size	Viewing Angle	Lens Type	Mounting Type
Lumex Opto/Components Inc. SSF-LXH4RA5GD-5V	5 V	Single	12 mA	Round with Domed Top	Green	565 nm	15 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5SRD	1.7 V	Single		Round with Domed Top	Red	660 nm	80 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5YD	2.1 V	Single		Round with Domed Top	Yellow	585 nm	30 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5LID	2.1 V	Single		Round with Domed Top	Red	635 nm	40 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RASBD	4.5 V	Single		Round with Domed Top	Blue	430 nm	25 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAGD	2.1 V	Single		Round with Domed Top	Green	565 nm	30 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAYD	2.1 V	Single		Round with Domed Top	Yellow	585 nm	30 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RABID		Single	6 mA	Round with Domed Top	Red	635 nm	6 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAID	2.1 V	Single		Round with Domed Top	Red	635 nm	40 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5BID		Single		Round with Domed Top	Red			T-1 3/4	5 mm		Diffused, Tinted	Through Hole, Right Angle
