B12-254-B-3

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

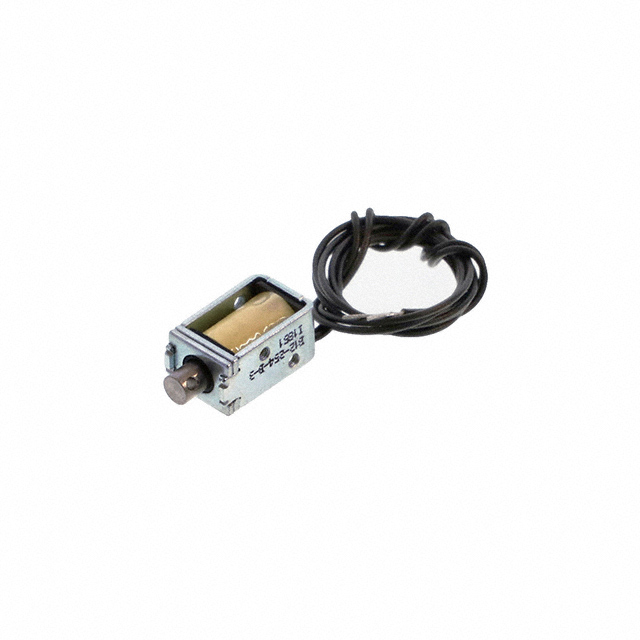

OPEN FRAME SOLENOID B12 - 12 VDC

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

OPEN FRAME SOLENOID B12 - 12 VDC

Technical Specifications

Parameters and characteristics for this part

OPEN FRAME SOLENOID B12 - 12 VDC

Part	Technology	Type	Shaft Detail	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Termination Style	DC Resistance (DCR)	Mounting Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]
Ledex Dormeyer Saia, a Division of Johnson Electric B12-254-B-3	Electromechanical	Open Frame (Pull)	Round	0.4 "	16 mm	0.63 "	0.32 in	8.13 mm	10.16 mm	Wire Leads	110.8 Ohm	Chassis Mount	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 29.27

General part information

Duty Solenoid Open Frame (Pull) Type Stroke Chassis Mount
