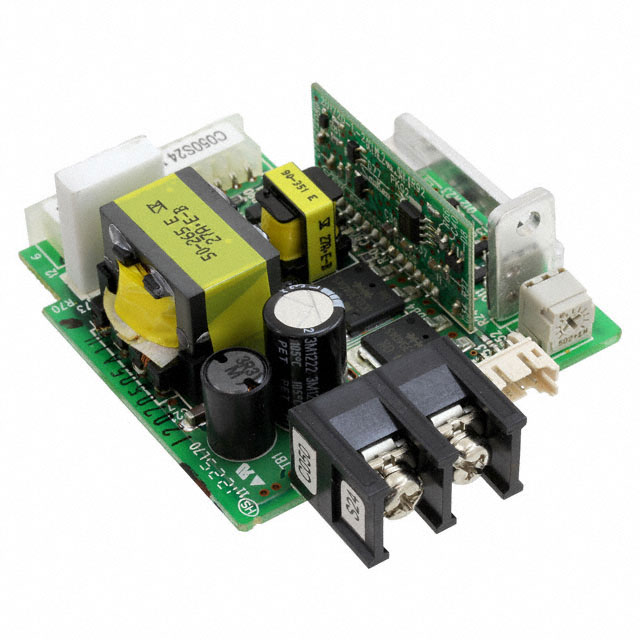

C050S24
ObsoleteSanken Electric USA Inc.
CONFG DC PWR MOD 24V(22.8-24.7V)
C050S24
ObsoleteSanken Electric USA Inc.
CONFG DC PWR MOD 24V(22.8-24.7V)
Description
General part information
C050S24
24V (22.8 ~ 24.7V) 60 W AC DC Configurable Power Supply Modules
Technical Specifications
Parameters and characteristics for this part
| Specification | C050S24 |
|---|---|
| Current - Output (Max) | 2.5 A |
| Current - Output 1 (Maximum) | 2.5 A |
| Current - Output 1 (Minimum) | 0 A |
| Features | Remote On/Off, User Adjustable |
| Number of Outputs | 1 |
| Number of Positions | 1 |
| Power (Watts) | 60 W |
| Type | DC Output Module |
| Voltage - Output (Max) | 24.7 V |
| Voltage - Output (Min) | 22.8 V |
| Voltage - Output (Nominal) | 24 V |
| Voltage - Output 1 (Adj Range) Maximum | 24.7 V |
| Voltage - Output 1 (Adj Range) Minimum | 22.8 V |
| Voltage - Output 1 (Supplier Preset) | 24 V |
