8455 010U1000

Active

Belden Inc.

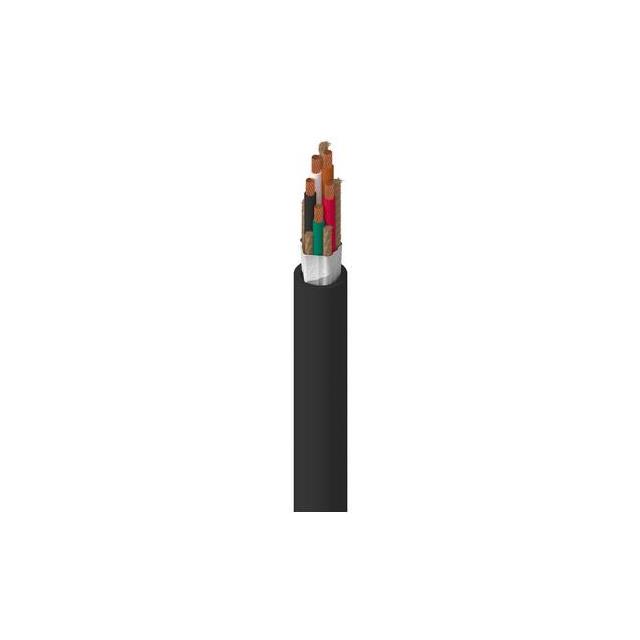

CABLE 5CON 18AWG/20AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5CON 18AWG/20AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	8455 010U1000

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26, 41 strands
Conductor Strand [custom]	34
Jacket (Insulation) Diameter [diameter]	0.28 in
Jacket (Insulation) Diameter [diameter]	7.11 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.031 in
Jacket (Insulation) Thickness	0.787 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Voltage	300 V
Wire Gauge	18 AWG, 20 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Voltage	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length	Wire Gauge	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 8455 010U1000	26 41 strands	34	Copper Tinned	Multi-Conductor	300 V	5	0.031 in	0.787 mm	0.28 in	7.11 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	1000 ft	304.8 m	18 AWG 20 AWG	Black	Rubber
Belden Inc. 8455 010U500	26 41 strands	34	Copper Tinned	Multi-Conductor	300 V	5	0.031 in	0.787 mm	0.28 in	7.11 mm	Ethylene Propylene Terpolymer Rubber (EPDM)			18 AWG 20 AWG	Black	Rubber	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.44

General part information

5 Conductor Multi-Conductor Cable Black 18 AWG, 20 AWG 1000.0' (304.8m)
