1414415
ActivePhoenix Contact

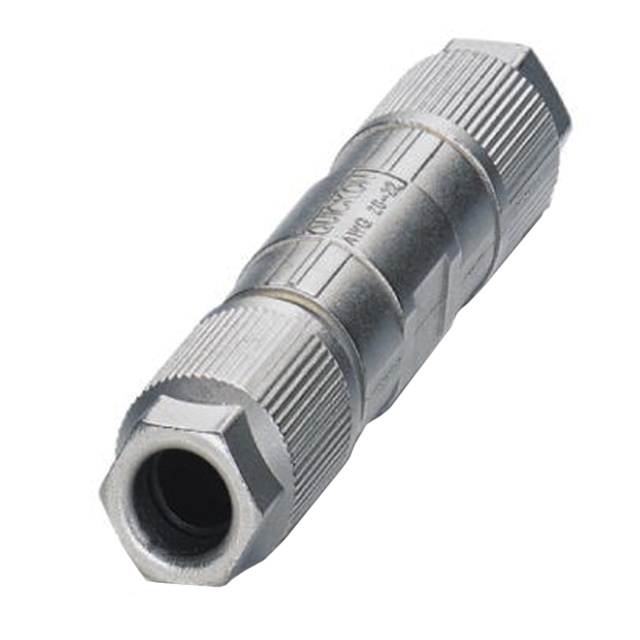

CONN DISTRIBUTOR 4POS GOLD IDC
1414415
ActivePhoenix Contact
CONN DISTRIBUTOR 4POS GOLD IDC
Description
General part information
1414415
4 Position Circular Connector Distributor IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1414415 |
|---|---|
| Backshell Material | Zinc Die Cast |
| Cable Opening (Max) | 0.382 in |
| Cable Opening (Min) | 0.197 in |
| Color | Silver |
| Connector Type | Distributor |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Tin |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | PA66, Polyamide, Halogen Free, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Plating | Nickel |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 60 VDC |
