Specification	1722582004

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Pitch	0.138 in
Row Spacing	0.181 in

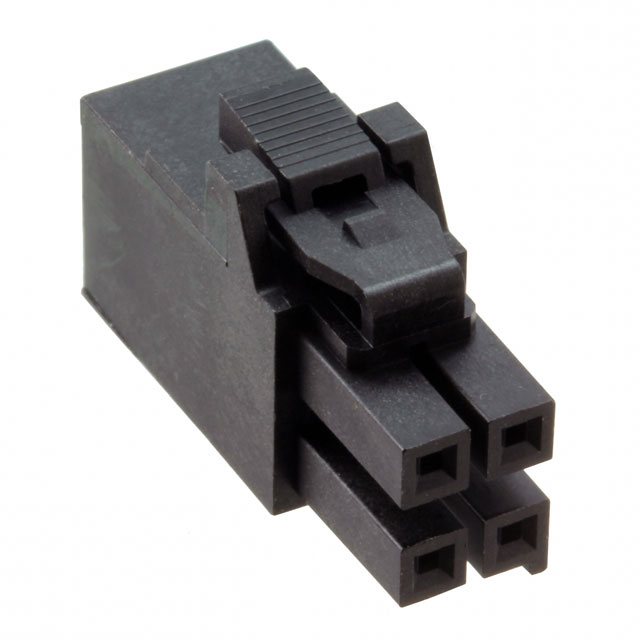

172258 Series

Part	Note	Mounting Type	Pitch	Contact Type	Color	Fastening Type	Connector Type	Number of Positions	Row Spacing	Contact Termination	Number of Rows	Insulation Material	Features	Operating Temperature (Max)	Operating Temperature (Min)
Molex 1722582010	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Natural	Latch Lock	Receptacle	10	0.181 in	Crimp	2
Molex 1722582106	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Natural	Latch Lock	Receptacle	6	0.181 in	Crimp	2	Nylon Polyamide (PA)	Terminal Position Lock (TPA) Notched	120 °C	-40 °C
Molex 1722581008	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Black	Latch Lock	Receptacle	8	0.181 in	Crimp	2
Molex 1722582116	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Natural	Latch Lock	Receptacle	16	0.181 in	Crimp	2		Terminal Position Lock (TPA) Notched
Molex 1722583112		Free Hanging (In-Line)	0.138 in	Female Socket	Black	Latch Lock	Receptacle	12	0.181 in	Crimp	2	Nylon Polyamide (PA)	Glow Wire Compliant Terminal Position Lock (TPA)	105 °C	-40 °C
Molex 1722581112	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Black	Latch Lock	Receptacle	12	0.181 in	Crimp	2		Terminal Position Lock (TPA) Notched
Molex 1722583104	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Black	Latch Lock	Receptacle	4	0.181 in	Crimp	2	Nylon Polyamide (PA)	Glow Wire Compliant Terminal Position Lock (TPA)	105 °C	-40 °C
Molex 1722582110	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Natural	Latch Lock	Receptacle	10	0.181 in	Crimp	2		Terminal Position Lock (TPA) Notched
Molex 1722584110		Free Hanging (In-Line)	0.138 in	Female Socket	Natural	Latch Lock	Receptacle	10	0.181 in	Crimp	2	Nylon Polyamide (PA)	Glow Wire Compliant Terminal Position Lock (TPA)	105 °C	-40 °C
Molex 1722584112	Contacts Not Included	Free Hanging (In-Line)	0.138 in	Female Socket	Natural	Latch Lock	Receptacle	12	0.181 in	Crimp	2	Nylon Polyamide (PA)	Glow Wire Compliant Terminal Position Lock (TPA)	105 °C	-40 °C
