1375819-1
ActiveTE Connectivity AMP Connectors

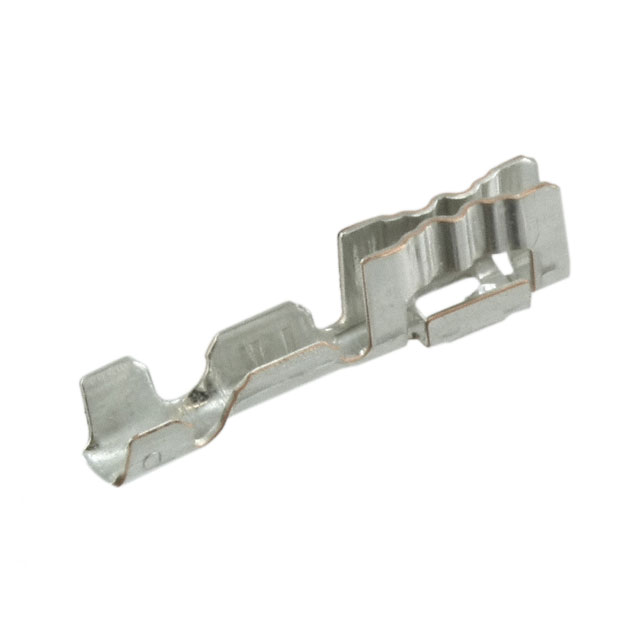

CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1375819-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1375819-1 | 1375819 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | - | 15 - 30 µin |
| Contact Finish Thickness | - | 0.38 - 0.76 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
1375819 Series
CONN SOCKET 22-26AWG CRIMP GOLD
| Part | Contact Finish | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1375819-2 | Gold | Socket | 15 µin | 0.38 µm | 22 AWG | 26 AWG | Crimp |
TE Connectivity AMP Connectors 1375819-1 | Tin | Socket | 22 AWG | 26 AWG | Crimp | ||
TE Connectivity AMP Connectors 1375819-3 | Gold | Socket | 30 Áin | 0.76 Ám | 22 AWG | 26 AWG | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 25 | $ 0.05 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| 2500 | $ 0.03 | |||
| Tape & Reel (TR) | 5500 | $ 0.03 | ||
| 11000 | $ 0.03 | |||
| 27500 | $ 0.02 | |||
| 55000 | $ 0.02 | |||
Description
General part information
1375819 Series
Socket Contact Tin 22-26 AWG Crimp
