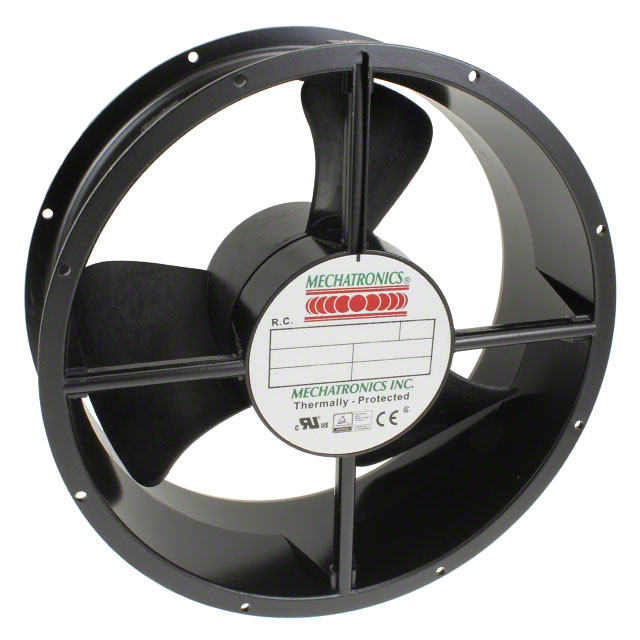

UF25GC23-BTHNR
ActiveMechatronics Bearing Group
FAN AXIAL 254X89MM 230VAC IP55
Deep-Dive with AI
Search across all available documentation for this part.
UF25GC23-BTHNR
ActiveMechatronics Bearing Group
FAN AXIAL 254X89MM 230VAC IP55
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF25GC23-BTHNR |
|---|---|
| Air Flow | 15.4 mł/min |
| Air Flow | 550 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 140 mA |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 33 W |
| RPM | 1650 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Static Pressure | 0.4 in H2O |
| Static Pressure | 99.6 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Weight | 1.9 kg |
| Weight | 4.1 lbs |
| Width [y] | 89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 87.80 | |
Description
General part information
UF25GC23-BTHNR
Fan Tubeaxial 230VAC Round - 254mm Dia Ball 550.0 CFM (15.40m³/min) 2 Terminals
