H7CC-R11WD

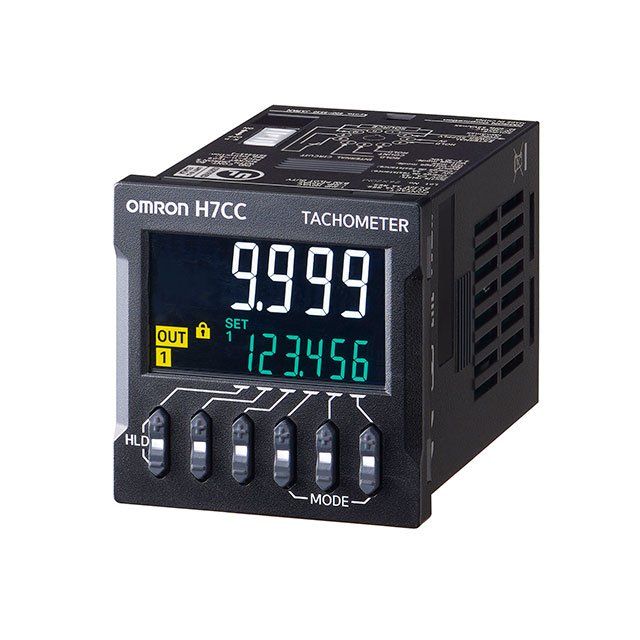

Tachometer 24VAC, 12 ~ 48VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | H7CC-R11WD |
|---|---|
| Count Rate (Options) | 10kHz, 30Hz |
| Display Characters - Height | 0.394 in |
| Display Characters - Height (Option 2) | 0.236 in |
| Display Type | LCD - Dual Color Characters, Backlight |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Input Type | No Voltage, Voltage |
| Maximum Number of Characters Per Row | 6 characters |
| Minimum Number of Characters Per Row | 6 characters |
| Mounting Type | Panel Mount |
| Operating Mode | Individual, Down, Command, Up, Quadrature |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Panel Cutout Length | 45 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 45 mm |
| Pin Count | 11 pins |
| Reset | Front Panel, External, Programmable |
| Termination Style | Plug In |
| Type | Tachometer |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Range 1 Maximum) | 24 VDC |
| Voltage - Supply (Range 1 Minimum) | 24 VAC |
| Voltage - Supply (Range 2 Maximum) | 48 VDC |
| Voltage - Supply (Range 2 Minimum) | 12 VDC |
| Voltage - Supply Maximum | 48 VDC |
| Voltage - Supply Minimum | 12 VAC |
