1-962841-2
ActiveTE Connectivity AMP Connectors

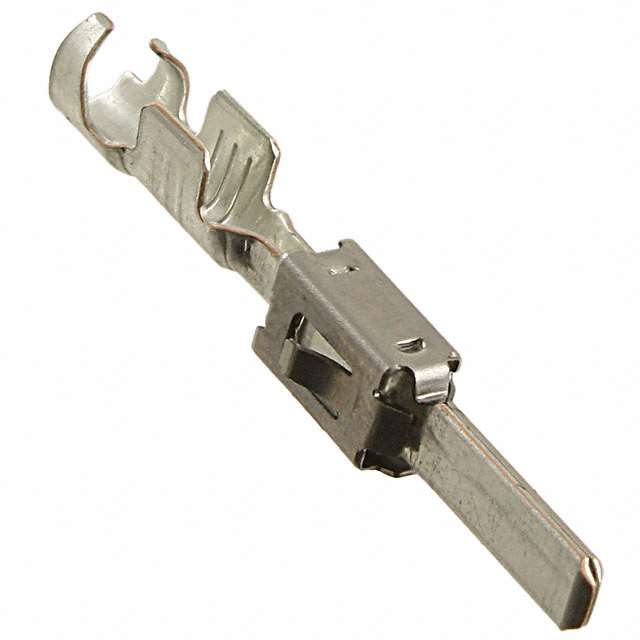

CONN TAB 17-20AWG CRIMP SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-962841-2
ActiveTE Connectivity AMP Connectors
CONN TAB 17-20AWG CRIMP SILVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-962841-2 | 962841 Series |
|---|---|---|
| Contact Finish | Silver | Tin, Silver |
| Contact Finish Thickness | 3 µm | 1 - 3 Ám |
| Contact Finish Thickness | 118.1 µin | 39.4 - 118.1 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Tab | Tab |
| Type | Power | Power |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
962841 Series
CONN TAB 17-20AWG CRIMP TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-962841-1 | 39.4 Áin | 1 Ám | Crimp | Tab | 17 AWG | 20 AWG | Tin | Power |
TE Connectivity AMP Connectors 1-962841-2 | 118.1 µin | 3 µm | Crimp | Tab | 17 AWG | 20 AWG | Silver | Power |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.28 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.19 | |||
| Tape & Reel (TR) | 4000 | $ 0.23 | ||
Description
General part information
962841 Series
Tab Contact Silver 17-20 AWG Crimp Power
