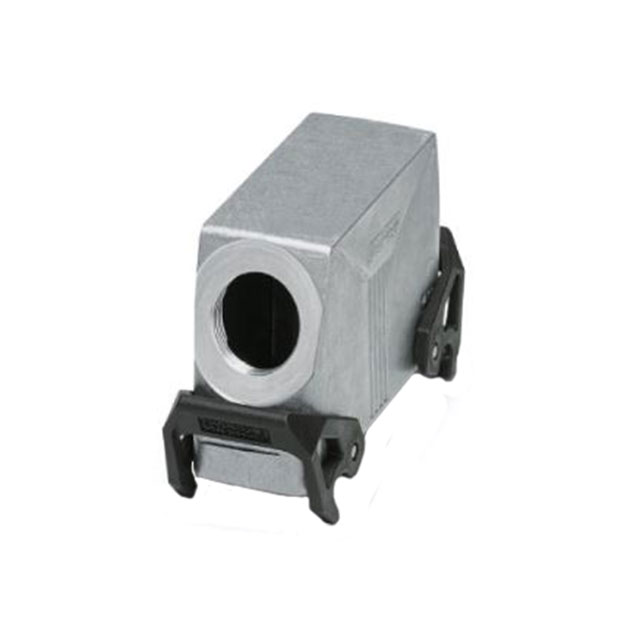

Specification	1412764

Connector Type	Hood
Features	Salt Water Resistant
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Lock Location	Locking Clip (2) on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B24
Size / Dimension Height	2.992 in
Size / Dimension Length	4.724 in
Size / Dimension Width	1.732 in
Style	Side Entry
Thread Size	M32

STANDARD Series

Heavy Duty Power Connectors HC-STA-D07-CHWSCF- 1TGM20-PL-BK

Part	Thread Size	Features	Size	Lock Location	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Ingress Protection IP Rating	Ingress Protection Description	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Housing Material	Style	Housing Color	Accessory Type	For Use With/Related Products
Phoenix Contact 1412689	M32	Salt Water Resistant	B16	Locking Clip (1) on Base Bottom	1.732 in	3.681 in	2.992 in	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Hood	125 °C	-40 °C	Aluminum Die Cast	Top Entry
Phoenix Contact 1424414	M32	Feed Through Salt Water Resistant	D50	Locking Clip (2) on Base Bottom	2.756 in	4.173 in	3.228 in	IP66 IP67	Dust Tight Water Resistant Waterproof	Base - Box Mount	125 °C	-40 °C	Aluminum Die Cast	Side Entry	Gray
Phoenix Contact 1412099	M40	Salt Water Resistant	B24	Locking Clip (2) on Base Bottom	1.732 in	4.724 in	2.992 in	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Hood	125 °C	-40 °C	Aluminum Die Cast	Top Entry
Phoenix Contact 1424395	PG21	Feed Through Salt Water Resistant	D25	Locking Clip (1) on Base Bottom	2.008 in	3.15 in	2.244 in	IP66 IP67	Dust Tight Water Resistant Waterproof	Base - Box Mount	125 °C	-40 °C	Aluminum Die Cast	Side Entry	Gray
Phoenix Contact 1412563	M32	Salt Water Resistant	B6	Locking Clip (1) on Base Bottom	1.732 in	2.362 in	2.835 in	IP66 IP69K	Dust Tight Water Resistant Waterproof	Hood	125 °C	-40 °C	Aluminum Die Cast	Side Entry
Phoenix Contact 1419240	PG11	Cable Cable to Cable	D7	Locking Clip (1) on Hood Top	0.953 in	0.953 in	2.382 in	IP66 IP67	Dust Tight Water Resistant Waterproof	Hood - Coupling	125 °C	-40 °C	Aluminum Die Cast	Top or Bottom Entry	Gray
Phoenix Contact 1412600	M25	Salt Water Resistant	B10	Locking Clip (1) on Base Bottom	1.732 in	2.874 in	2.835 in	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Hood	125 °C	-40 °C	Aluminum Die Cast	Side Entry
Phoenix Contact 1412886																Locking Latch	and B24 Housings B16 Heavycon® EVO B10
Phoenix Contact 1412646	M32	Cable to Cable Salt Water Resistant	B16	Locking Clip (1) on Hood Top	1.732 in	3.681 in	3.11 in	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Hood - Coupling	125 °C	-40 °C	Aluminum Die Cast	Bottom Entry Top or Bottom Entry
Phoenix Contact 1412729	M25	Salt Water Resistant	B16	Locking Clip (1) on Base Bottom	1.732 in	3.681 in	2.362 in	IP66 IP67 IP69K	Dust Tight Water Resistant Waterproof	Hood	125 °C	-40 °C	Aluminum Die Cast	Top Entry
