MSN22AFG01

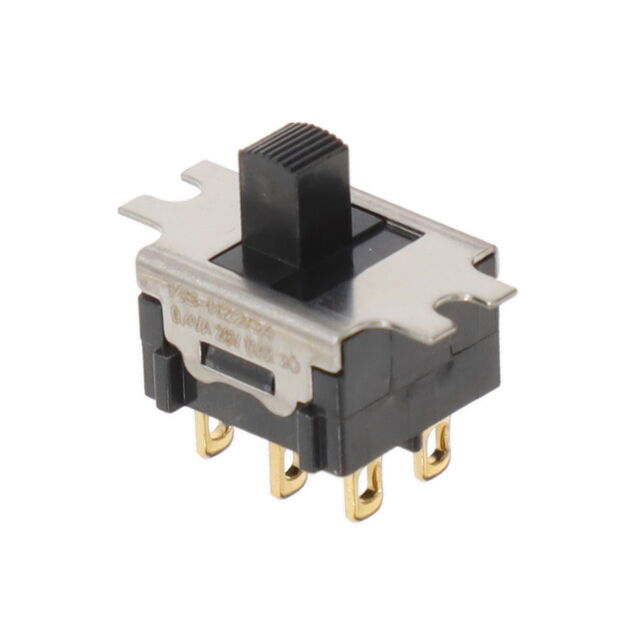

Slide Switch DPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MSN22AFG01 |
|---|---|
| Actuator Length | 5.11 mm |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Gold |
| Contact Material | Copper |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 25000 |
| Mechanical Life (Cycles) | 50000 Cycles |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-On |
| Switch Travel | 2.21 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
