GDCX-PN-88

Active

Kycon, Inc.

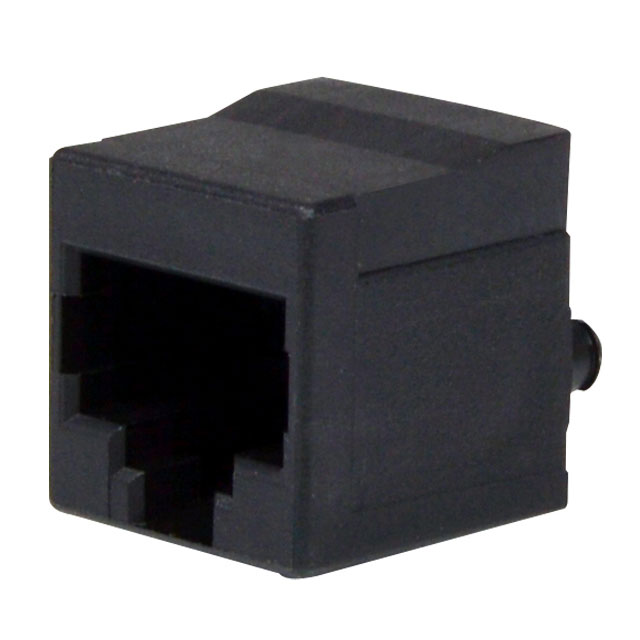

CONN MOD JACK 8P8C VERT UNSHLD

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN MOD JACK 8P8C VERT UNSHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GDCX-PN-88	GDCX-PN Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	-	Board Guide, Board Lock, Keyed
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	6p4c, 8p8c (RJ45, Ethernet)
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Vertical	Vertical
Shielding	Unshielded	Unshielded
Tab Direction	User Selectable	User Selectable
Termination	Solder	Solder

MODJACK PERPEND 6P4C BLK ROHS CO

Part	Contact Finish Thickness	Orientation	Features	Number of Ports	Number of Rows	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Connector Type	Housing Material	Number of Positions/Contacts	Contact Finish	Shielding	Contact Material	Termination	Mounting Type
Kycon, Inc. GDCX-PN-64	Flash	Vertical	Board Guide, Board Lock	1	1	Does Not Contain LED	85 °C	-40 °C	User Selectable	Jack	Polybutylene Terephthalate (PBT)	6p4c	Gold	Unshielded	Phosphor Bronze	Solder	Through Hole
Kycon, Inc. GDCX-PN-88	Flash	Vertical		1	1	Does Not Contain LED	85 °C	-40 °C	User Selectable	Jack	Polybutylene Terephthalate (PBT)	8p8c (RJ45, Ethernet)	Gold	Unshielded	Phosphor Bronze	Solder	Through Hole
Kycon, Inc. GDCX-PN-88K	Flash	Vertical	Board Guide, Board Lock, Keyed	1	1	Does Not Contain LED	85 °C	-40 °C	User Selectable	Jack	Polybutylene Terephthalate (PBT)	8p8c (RJ45, Ethernet)	Gold	Unshielded	Phosphor Bronze	Solder	Through Hole
