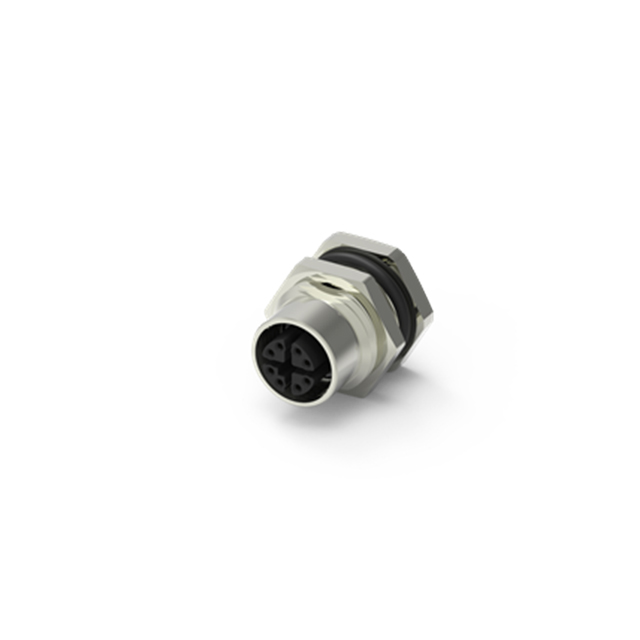

Specification	216X-08FSF

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 µin
Contact Material	Brass
Current Rating	0.5 A
Fastening Type	Threaded
Features	Board Guide
Ingress Protection	Waterproof
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	X
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Shielding	Shielded, Unshielded
Termination	Solder
Voltage Rating (AC)	50 VAC
Voltage Rating (DC)	60 VDC
