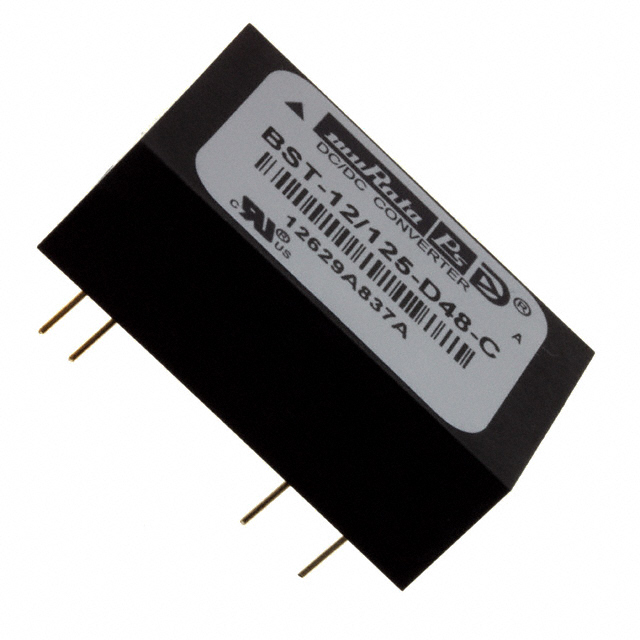

BST-12/125-D48-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 12 V, 125 MA
Deep-Dive with AI
Search across all available documentation for this part.
BST-12/125-D48-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 12 V, 125 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BST-12/125-D48-C | BST-12 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 125 mA | 125 mA |
| Current - Output (Max) | 125 mA | 125 mA |
| Efficiency | 77 % | 77 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module | 8-DIP Module |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.25 " | 1.25 " |
| Size / Dimension [x] | 31.8 mm | 31.8 mm |
| Size / Dimension [y] | 0.8 in | 0.8 in |
| Size / Dimension [y] | 20.3 mm | 20.3 mm |
| Size / Dimension [z] | 0.45 " | 0.45 " |
| Size / Dimension [z] | 11.4 mm | 11.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V | 72 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 12 V | 12 V |
| Voltage - Output 2 | -12 V | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
BST-12 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 12 V, 125 MA
| Part | Voltage - Input (Min) [Min] | Voltage - Output 2 | Package / Case | Applications | Current - Output (Max) | Current - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Mounting Type | Type | Voltage - Input (Max) [Max] | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BST-12/125-D48-C | 18 V | -12 V | 8-DIP Module | ITE (Commercial) | 125 mA | 125 mA | -40 °C | 75 ░C | 77 % | Through Hole | Isolated Module | 72 V | 1000 V | 2 | 12 V | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | 3 W |
Murata Power Solutions Inc. BST-12/125-D48-C |
Description
General part information
BST-12 Series
Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 72V Input
