152240-0110-GB

Active

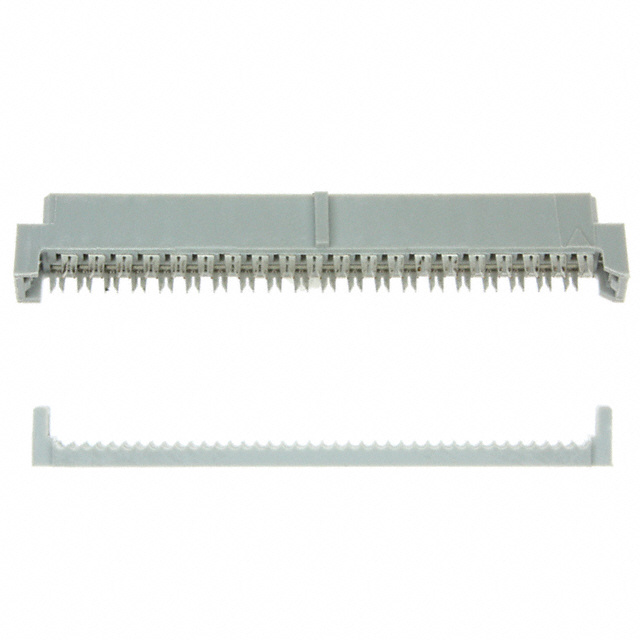

CONN RCPT 40POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN RCPT 40POS IDC 28AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152240-0110-GB	152240 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Type	Female Socket	Female Socket
Features	Polarizing Key, Feed Through	Polarizing Key, Feed Through, Strain Relief
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	40	40
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

CONN RCPT 40POS IDC 28AWG GOLD

Part	Number of Positions	Row Spacing	Row Spacing	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Connector Type	Mounting Type	Contact Type	Cable Termination	Pitch [x]	Pitch [x]	Features	Color	Contact Finish	Number of Rows
3M 152240-0110-GB	40	2 mm	0.079 in	Ribbon Cable	0.76 Ám	30 Áin	28 AWG	Receptacle	Free Hanging (In-Line)	Female Socket	IDC	0.079 in	2 mm	Feed Through, Polarizing Key	Gray	Gold	2
3M 152240-0113-GG	40	2 mm	0.079 in	Ribbon Cable	0.38 µm	15 µin	28 AWG	Receptacle	Free Hanging (In-Line)	Female Socket	IDC	0.079 in	2 mm	Feed Through, Polarizing Key, Strain Relief	Gray	Gold	2
3M 152240-0110-GG	40	2 mm	0.079 in	Ribbon Cable	0.38 µm	15 µin	28 AWG	Receptacle	Free Hanging (In-Line)	Female Socket	IDC	0.079 in	2 mm	Feed Through, Polarizing Key	Gray	Gold	2
3M 152240-0100-GG	40	2 mm	0.079 in	Ribbon Cable	0.38 µm	15 µin	28 AWG	Receptacle	Free Hanging (In-Line)	Female Socket	IDC	0.079 in	2 mm	Feed Through	Gray	Gold	2
3M 152240-0103-GB	40	2 mm	0.079 in	Ribbon Cable	0.76 Ám	30 Áin	28 AWG	Receptacle	Free Hanging (In-Line)	Female Socket	IDC	0.079 in	2 mm	Feed Through, Strain Relief	Gray	Gold	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Rectangular Receptacle Connector IDC Gold 28 AWG
