ZE05H-24DP-2H
ActiveHirose Electric USA, Inc.
COMBINATION LINE CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZE05H-24DP-2H
ActiveHirose Electric USA, Inc.
COMBINATION LINE CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZE05H-24DP-2H |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A, 2 A |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 8.84 mm |
| Insulation Height | 0.348 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.98 | |
| 10 | $ 2.71 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| Digi-Reel® | 1 | $ 2.98 | ||
| 10 | $ 2.71 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| Tape & Reel (TR) | 300 | $ 2.08 | ||
| 600 | $ 2.02 | |||
| 900 | $ 1.84 | |||
| 1500 | $ 1.66 | |||
| 3000 | $ 1.60 | |||
Description
General part information
ZE05H-24DP-2H

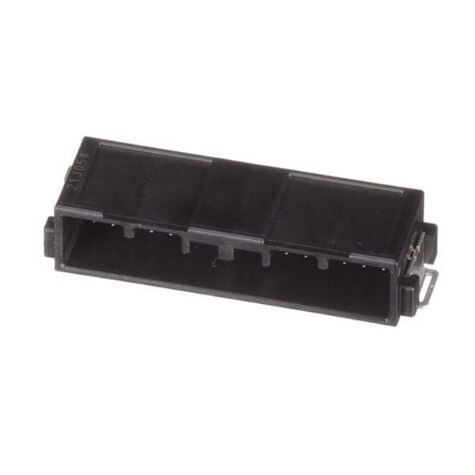

Connector Header Surface Mount, Right Angle 24 position 0.079" (2.00mm)
