1624013
ActivePhoenix Contact

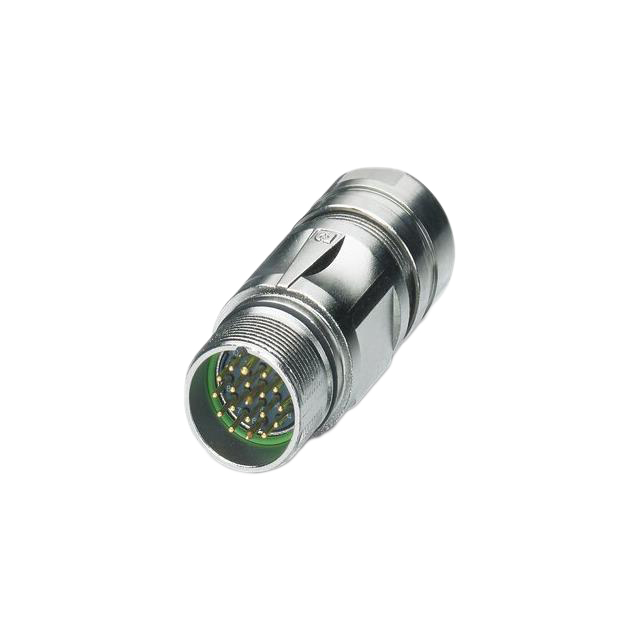

CONN RCPT HSNG MALE 19POS INLINE
1624013
ActivePhoenix Contact
CONN RCPT HSNG MALE 19POS INLINE
Description
General part information
1624013
19 (16 + 2 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 1624013 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Size (Power) | 1.5 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Power, PE |
| Shell Finish | Nickel |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-19 |
| Shielding | Shielded |
| Type | For Male Pins |
