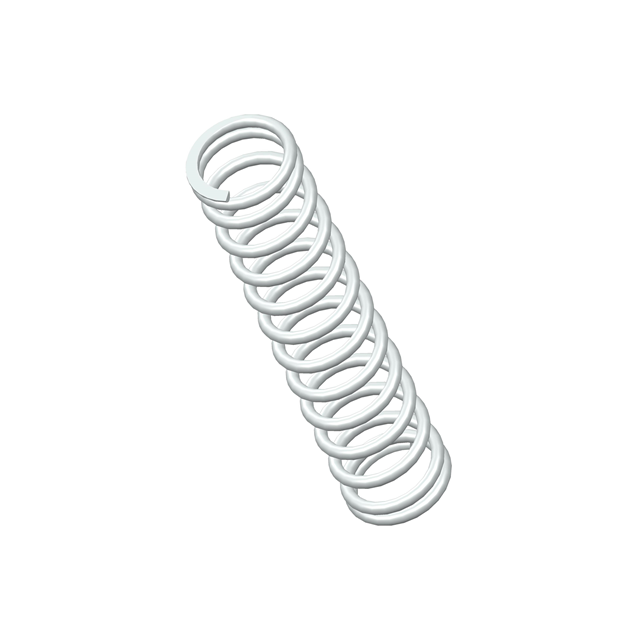

S-1367CS
ActiveCentury Spring Corp
COMP O= .531,L= 2.44,W= .0625
S-1367CS
ActiveCentury Spring Corp
COMP O= .531,L= 2.44,W= .0625
Description
General part information
S-1367CS
COMP O= .531,L= 2.44,W= .0625
Technical Specifications
Parameters and characteristics for this part
| Specification | S-1367CS |
|---|---|
| Diameter - Inside | 0.407 in |
| Diameter - Outside | 0.531 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 2.44 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 16 lbs/in |
| Type | Compression |
| Wire Diameter | 0.062 in |
