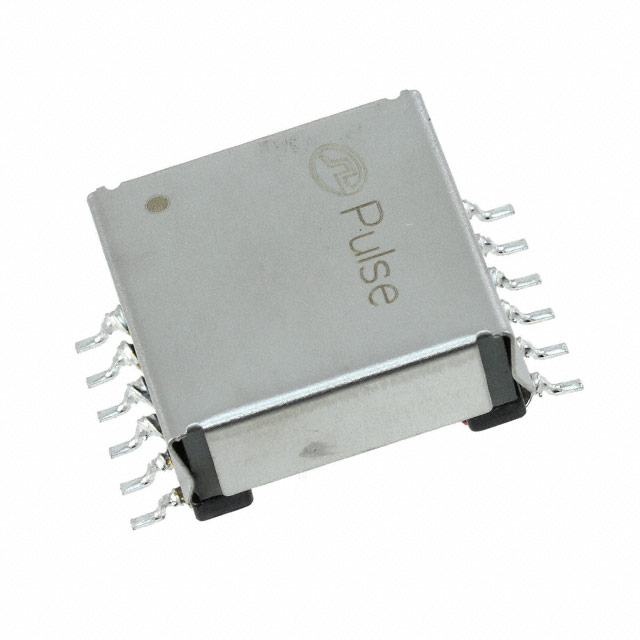

PA1366NL
ActivePulse Electronics
PULSE XFMR 10UH
PA1366NL
ActivePulse Electronics
PULSE XFMR 10UH
Description
General part information
PA1366NL
10µH Pulse Transformer Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PA1366NL |
|---|---|
| Height - Seated (Max) | 0.45 in |
| Inductance | 10 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.86 in |
| Size / Dimension Width | 1.15 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
