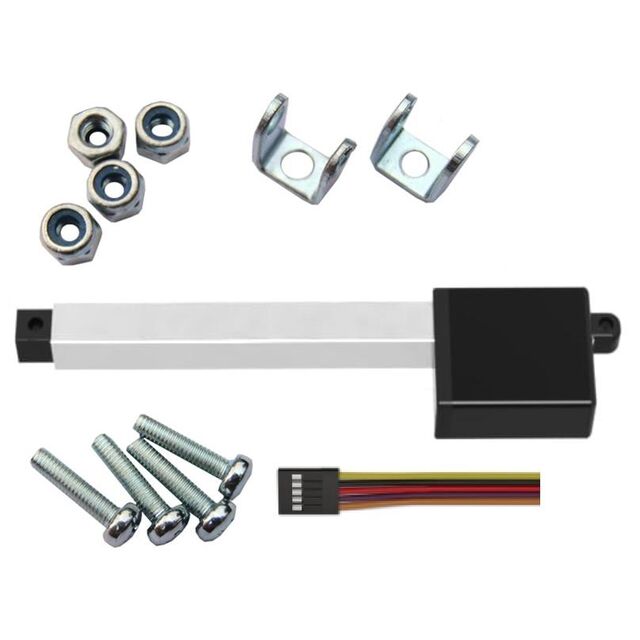

P8-P MICRO LINEAR ACTUATOR
P8-75-252-12-P
ActiveActuonix Motion Devices Inc
P8-P MICRO LINEAR ACTUATOR
Description
General part information
P8-75-252-12-P
P8-P MICRO LINEAR ACTUATOR
Technical Specifications
Parameters and characteristics for this part
| Specification | P8-75-252-12-P |
|---|---|
| Accuracy | 0.4 mm |
| Construction | Lead Screw |
| Duty Cycle | 20 % |
| Features | Integrated Sensor |
| Feedback Type | Potentiometer |
| Gear Reduction Ratio | 252 |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Load Force (Dynamic) | 33.72 lbf |
| Load Force (Static) | 40.46 lbf |
| Motor Type | Brushed |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Speed | 0.24 in/s |
| Stroke Length (Linear) | 2.953 in |
| Termination Style | Cable with Connector |
| Type | Linear Actuator |
| Voltage - Rated | 12 VAC |
